QZYX-C
Hydraulic double Digital Display Paper Cutter Machine
Hydraulic Double Digital Display Paper cutter adopt position testing device through liquid crystal screen to display its dimensions with resolution rate of 0.10mm, correct reading, paper feeding device adopts double guide-rail to ensure the cutting precision, so it is an ideal cutting machine of the first choice for precise items. The cutting adopts flat worm speed redactor. And the structure of knife bed is reasonable, make- ready layout. At present it is an advance machine in domestic market.
- Linear guide-rail makes paper impeller run smooth, low noise, accurate positioning, enhance the cutting precision and speed greatly, prolong the service lift of
- paper cutter.
- The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof. Large side working table (1000*800) is optional.
- IR photoelectric protection, buttons by two hands safety devices.

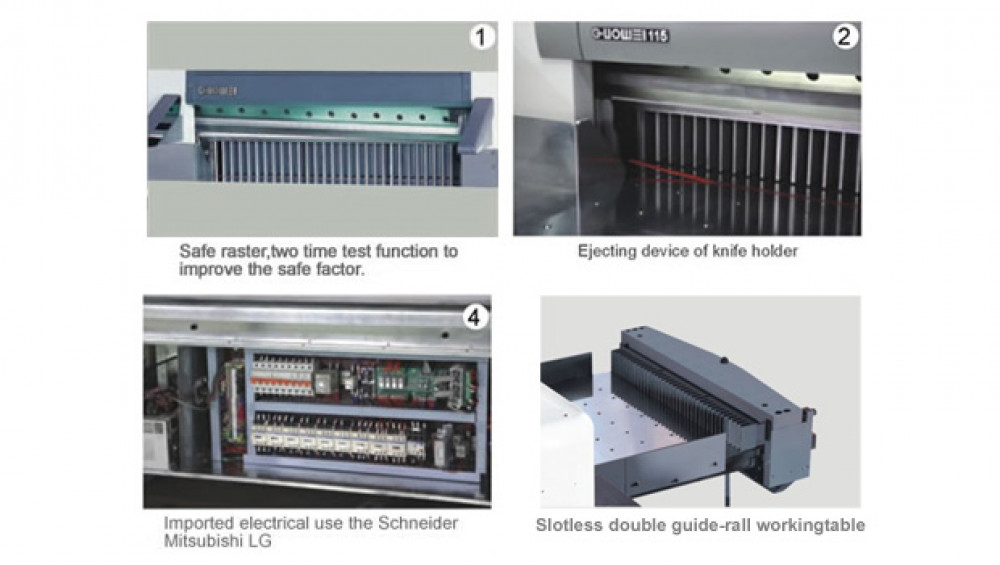

- Safety device for knife bed, overloading protection for cutting, automatic return safety device.
- Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted. The paper is pressed twice by pressure-increased system.
- Mechanical assistance device for knife replacement makes knife replaced quickly and safely.
- Equipped with the optical knife alignment to make cutting more convenient.
- Ejecting device for knife bar.
- Flat worm speed reducer transmission.
|
Model |
|
|
92CG |
78 |
92 |
115 |
130 |
137 |
155 |
166 |
186 |
|
Cutting width |
L |
Cm/In |
92/36.2” |
78/30.7” |
92/36.2” |
115/45.3” |
130/51.2” |
137/54” |
155/61” |
166/65.4” |
186/73.2” |
|
Max. cutting height without assistance pressing plate |
K |
Cm/In |
11/4.3” |
13/5.1” |
13/5.1” |
16.5/6.5” |
13/5.1” |
16.5/6.5” |
16.5/6.5” |
16.5/6.5” |
16.5/6.5” |
|
Max. cutting depth |
D |
Cm/In |
93/36.5” |
78/30.7” |
93/36.5” |
115/45.3” |
130/51.2” |
145/57” |
155/61” |
166/65.4” |
195/76.8” |
|
Min cutting depth without assistance pressing plate |
|
Cm/In |
2.5/1” |
2.5/1” |
2.5/1” |
3/1.2” |
3/1.2” |
3/1.2” |
3/1.2” |
3/1.2” |
3/1.2” |
|
Extended length of working table |
J |
Cm/In |
65/25.6” |
64/25.2” |
65/25.6” |
73/28.7” |
73/28.7” |
74/29.1” |
75/29.5” |
75/29.5” |
75/29.5” |
|
Height of working table |
G |
Cm/In |
86/33.9” |
86.5/34” |
86.5/34” |
89/35” |
86.5/34” |
91/35.5” |
90/35.5” |
90/35.5” |
90/35.5” |
|
Machine width including side working table |
A |
Cm/In |
192/75.6” |
215/84.6” |
233/91.7” |
266/104.7” |
266/104.7” |
287/113” |
314/123.6” |
322/126.8” |
375/147.6” |
|
Total length of working table |
F |
Cm/In |
198/78” |
178/70” |
198/78” |
226/89” |
241/95” |
259/102” |
280/110.2” |
283/111.4” |
355/139.7” |
|
Cutting speed |
|
r/min |
30 |
45 |
45 |
45 |
45 |
45 |
42 |
42 |
40 |
|
Max. paper pressure |
|
N |
30000 |
30000 |
35000 |
40000 |
40000 |
45000 |
55000 |
60000 |
65000 |
|
Power of main motor |
|
Kw |
2.2 |
3 |
3 |
4 |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
|
Motor for paper feeding |
|
Kw |
0.37 |
0.37 |
0.37 |
0.55 |
0.55 |
0.55 |
0.75 |
0.75 |
0.75 |
|
Air pump |
|
Kw |
0.55 |
0.55 |
0.55 |
0.75 |
0.75 |
0.75 |
0.75X2 |
0.75X2 |
0.75X2 |
|
Machine weight |
|
Kg |
2200 |
2600 |
2900 |
4600 |
3900 |
4500 |
5000 |
5500 |
6600 |
|
Overall dimension (LxWxH) |
|
In |
90x56x73” |
83x56x77” |
89x56x77” |
101x63x85” |
103x61x77” |
111x63x85” |
117x65x85” |
124x63x85” |
134x72x91” |
|
Blade specification (LxWxH) |
|
In |
43.3x5x0.5” |
37.8x5x0.5” |
43.3x5x0.5” |
54.7x6.3x0.54” |
59.8x5x0.5” |
63.2x6.3x0.54” |
70.3x6.3x0.54” |
75x6.3x0.54” |
83.5x6.3x0.54” |
