2-Layer Corrugated Production Line
2-Layer Corrugated Production Line
|
Technical Specifications |
|
|
Model |
SF-280S |
|
Width of work |
1400 mm 1600mm 1800mm |
|
Direction of operation |
left or right (based on customer workshop) |
|
Design speed |
80 m/min |
|
Temperature range |
160-200 ? |
|
Gas source |
Mpa 0.4-0.9 |
|
Heating mode |
Steam heating |
|
Diameter Parameters of Roller |
|
|
Corrugated roller diameter |
?280 mm |
|
Pressure roller diameter |
?292 mm |
|
Roller diameter |
?216 mm |
|
Preheater diameter |
?320 mm |
|
Power motor parameters |
|
|
Main drive motor |
7.5 KW rated voltage :380 V 50Hz continuous (S1) working system |
|
Wind suction motor |
7.5 KW rated voltage :380 V 50Hz continuous (S1) working standard |
|
Technical Specifications |
|
|
Model |

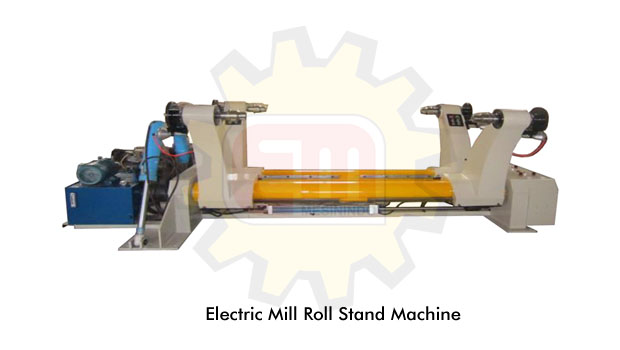

Mill Roll Stand |
|
Mill roll stand Mode of action |
full hydraulic action |
|
The roll paper width |
Max.1800mm. Min 500mm |
|
The roll paper diameter |
Max ?1400mm |
|
One side Max support weight |
Max 2000KG |
|
Mill roll stand the main roller |
?219mm |
|
Air source working pressure (Mpa) |
0.4-- 0.8Mpa |
|
Working power supply |
voltage 380V frequency 50Hz |
|
Hydraulic system parameters |
|
|
Working air pressure (Mpa) |
16---18Mpa |
|
Hydraulic cylinder work scope (lifting) |
?100×440mm |
|
The hydraulic cylinder work scope (clamping/transverse move) |
?70×900mm |
|
Hydraulic pressure station motor power |
3.7 KW short (S2) work system |
|
Rated voltage and frequency |
380V 50Hz |
|
Hydraulic station electromagnetic valve working voltage |
220V 50Hz |
|
Technical Specifications |
|
|
Model |

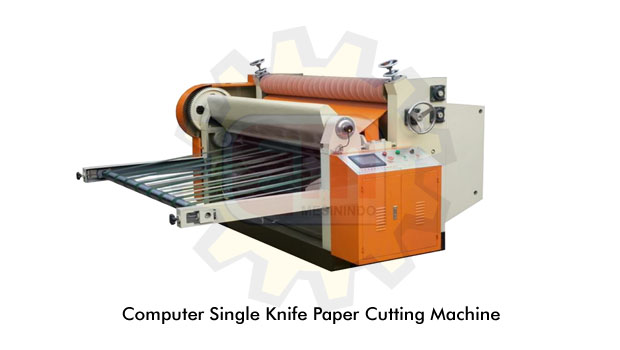

Single Knife Paper Cutting Machine |
|
Operator |
2 |
|
Layers of rewinding paper |
2 |
|
Width of work |
1800 MM |
|
Length of rewinding |
0.5 M - 1000 M |
|
Coil shaft motor power |
25 N |
|
Low Voltage Electrical Appliances |
Zhengtai Brand |
|
Voltage |
380 V/50HZ |
|
Controller |
1 |
