2-Ply Corrugated Paperboard Production Line
2-Ply Corrugated Paperboard Production Line
|
Machine Composition |
||
|
No |
Machine Name |
Qty |
|
1 |
320F Single Facer |
1 |
|
2 |
600 Preheater |
1 |
|
3 |
Hydraulic shaftless mill roll stand |
1 |
|
4 |
Conveying bridge |
1 |
|
5 |
Slitter cross cutter |
1 |
|

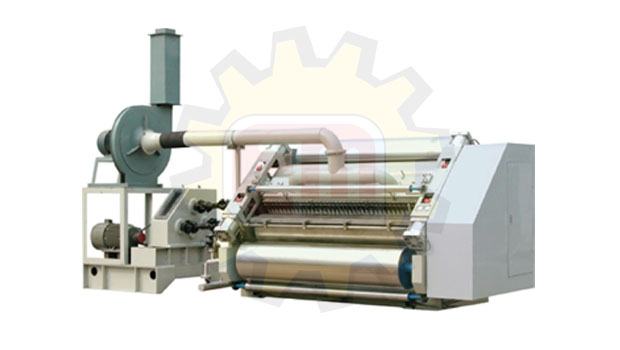

Technical Specifications |
|
|
Model |
SF-320 |
|
Width of work |
1400-2200mm |
|
Direction of operation |
left or right (based on customer workshop) |
|
Design speed |
100 m/min |
|
Temperature range |
160-200 ? |
|
Air pressure |
0.4-0.9 Mpa |
|
Steam pressure |
0.8-1.3 Mpa |
|
Corrugated Flute Type |
UV or UVV |
|
Diameter Parameters of Roller |
|
|
Corrugated roller diameter |
?320 mm |
|
Pressure roller diameter |
?315 mm |
|
Glue roller diameter |
?175 mm |
|
Preheater diameter |
2*?320 mm |
|
Power motor parameters |
|
|
Main drive motor |
15 KW rated voltage :380 V 50Hz continuous (S1) working system |
|
Draw fan motor |
7.5 KW rated voltage :380 V 50Hz continuous (S1) working standard |
|

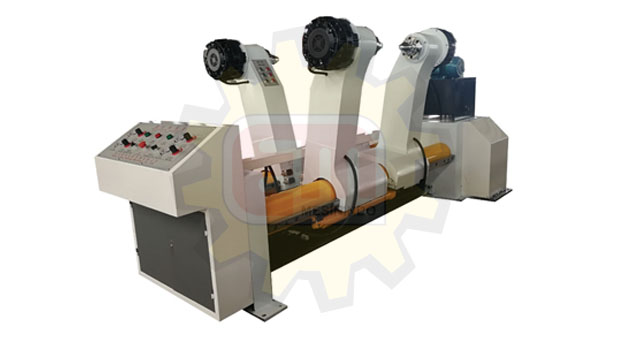

Technical Specifications |
|
|
Model |
Mill Roll Stand |
|
Reel Stand |
driven by hydraulic |
|
Kraft paper range width |
Max: 1800mm, Min: 1000mm |
|
Kraft paper range diameter |
Max:?1800mm, Min:?1000mm |
|
Max load-bearing |
2500kg (One side) |
|
Main roller dia. |
?219mm |
|
Pneumatic Source Pressure (Mpa) |
0.4--0.8Mpa |
|
Power |
380V 60Hz |
|
Hydraulic system parameters |
|
|
Working air pressure (Mpa) |
16---18Mpa |
|
Hydraulic cylinder range (lift/down) |
?100×440mm |
|
Hydraulic cylinder range (clamping/loosen) |
?63×700mm |
|
Hydraulic station motor power |
4 KW short time (S2) working type nominal |
|
Voltage and frequency |
380V 60Hz |
|
Hydraulic station electromagnetic valve working voltage |
380V 60Hz |
|

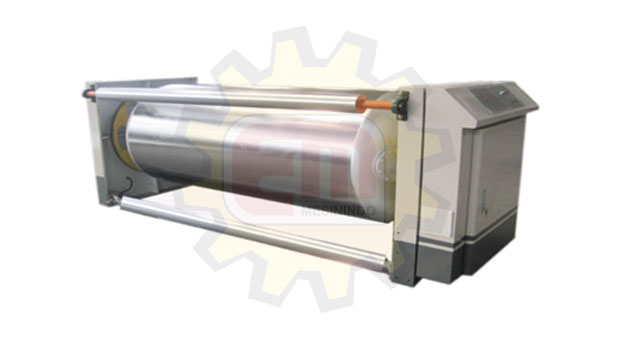

Technical Specifications |
|
|
Model |
PH600 Preheater |
|
Practical Width |
1800mm |
|
Diameter of the preheater |
?900mm Electric to adjust the preheating area in 270° |
|
Diameter of the heating area electric adjusting rollers |
?110mm×2 |
|
Steam temperature |
80-200? |
|
Steam Pressure |
0.8-1.3Mpa |
|
Working Power |
380V 50Hz |
|
Power |
motor:0.37kw |
|
Short Time (S2) |
Working Type |
|
Technical Specifications |
|
|
Model |
Conveying Bridge |
|
Working Width |
1800mm |
|
Operation Direction |
Left or right (decided by the workshop of customer) |
|
Max Height |
4700mm |
|
Working Speed |
100m/min |
|
Spec of the rollers |
|
|
Paper feeding rollers & tension rollers |
?125mm |
|
Transport rollers |
?125mm |
|
Main tension drive rollers |
?70mm |
|
Paper pass rollers and paper guide rollers |
?70mm |
|
Paper feeding rollers with belts |
?125mm |
|
Spec of motor |
|
|
Conveying Bride Suction Motor |
2.2KW |
|
Nominal voltage |
380V 50Hz Continuous (S1) working Type |
|
Paper width adjusting motor |
370W |
|
Nominal voltage |
380V 50Hz Continuous (S1) working Type |
|
Technical Specifications |
|
|
Model |
NC-100 |
|
Working width |
1800mm |
|
The Max. machinery speed |
100m/min |
|
Total power |
23KW |
|
Diameter of cutting paper knife roller |
188mm |
|
Cutting length |
500mm-9999mm |
|
Cutting accuracy |
±1mm (keeping same speed) |
|
Max collection paper length |
1300mm |
|
Power |
5KW |
|
Main drive motor (AC serve) |
power:11KW one set produce place: ShangHai |
|
Transducer of paper feeder motor |
power:3.7KW (Delta brand) one set |
|
|
202KW (Delta brand) Two sets |
