CWZD-400A
CWZD-400A Heavy Duty Multifunction Laminated Bag Making Machine

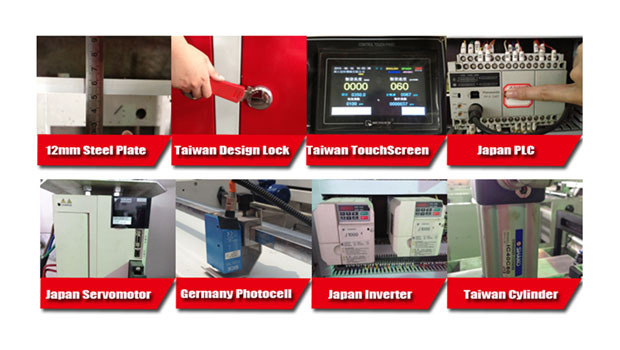

Features:
- All of parameter display by touch screen.
- It has EPC and double photocell tracking from unwinding.
- Super length size, which has 6 times skip feeding design.
- Automatic waste film rewinding unit
|
Technical Specifications |
|
|
Model |
CWZD-400A |
|
Type of bag produced |
Three side sealing bag, center sealing bag, center sealing bag with gusset |
|
Suitable material |
plating ALU laminated film, paper-plastic laminated film, pure-ALU laminated film which takes BOPP, PET, CPP,ALU, and Nylon etc plastic laminated film as base material |
|
Speed |
Max. 150pcs/min |
|
Machine speed |
≤35 m/min (depending on the material) |
|
Length of bag |
Max. 380mm*6skip=2280mm |
|
Width of bag |
70-380mm |
|
Dimension of material roll |
?650*800mm (diameter * width) |
|
The max width size of 3 sides sealing bag |
380 mm/line |
|
The max width size of Center sealing with side gusset |
100-260mm (gusset 60mm*2) |
|
Accuracy of orientation |
≤± 0.5mm |
|
Number of thermal-sealing knife |
Vertical sealing adopts 3groups for heating fluctuation, cooling fluctuation from up and down.
Bottom sealing adopts 3 groups heating fluctuation, 1 group for cooling fluctuation. |
|
The quantity of temperature heating |
11 group |
|
The bound of temperature |
0-300 ? |
|
Total power |
24kw |
|
Machine weight |
3500kg |
|
Overall dimension (L x W x H) |
8000x1750x1800mm |
