BSD-680B

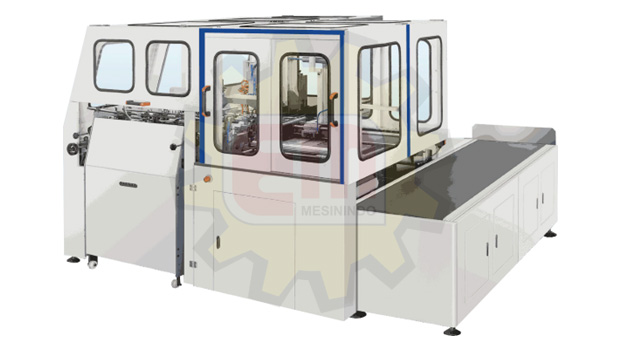

BSD-680B Automatic Hardcover Machine
BSD-680B Hardcover machine is specialized in producing hard covers (square and round spine), table calendar, mobile phone box, wine box, gift box, Y-O note book, inside Y-O file folder and so on.
|
Technical Specifications |
|
|
Model |
BSD-680B |
|
Max. cover size |
680~405mm (1~7pcs) |
|
Min. cover size |
70~00mm (Single board, double board, books) |
|
Center Board |
6~100mm |
|
Gutter width |
3~13mm (The part can be modified for special products) |
|
Center board thickness |
0.5~5mm |
|
Flaps bending width |
7-14mm |
|
Cover material |
80~200g/m2 (C1S, C2S, Book paper, Mechanical printing leather, Cloth, Art paper) |
|
Board thickness |
1~5m 550~2400g/m2 (If add the sponge 3mm, the product can be produced with 7mm thickness) |
|
Speed |
10~36pcs/min |
|
Voltage |
380V/220V |
|
Weight |
4500kg |
|
Power |
10.4kw |
|
Overall size |
3500x3500x2000mm |
