FHJ-EC2

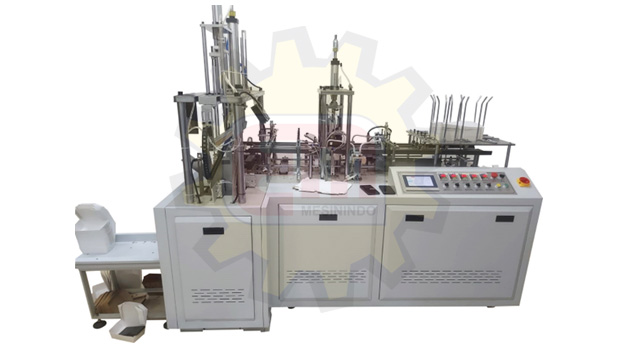

FHJ-EC2 Automatic Paper Box Forming Machine
FHJ-EC2 have characteristics of mechanical transmission, speed, energy-saving, stable and simple operation, microcomputer detection and domestic advanced technology products. FHJ-EC2 has advantages of high speed, convenient operation etc. This machine adopts built-in hot air generator, suitable for single PE coated paper. For the production of single-PE disposable lunch boxes through the automatic feed paper, heating (comes with hot air generating device), hot press molding (adhesive box four corners), automatic points collected, microcomputer control of continuous processes. The maximum machine speed is 35 times per minute. It has a monitor computer system. If the fault the machine will stop and alarm.
|
Technical Specifications |
|
|
Model |
FHJ-EC2 |
|
Production capacity |
25-30 times/min (The actual output is subject to the product size) |
|
Maximum size |
500 x350mm |
|
Suitable Material |
200-400g/m2 PE Coated paper |
|
Total Power |
10KW |
|
Total Weight |
1.3T |
|
Overall Dimension |
2280 x 1450 x 2300 mm |
|
Working Air Source |
Air pressure 0.5-0.6Mpa (Need to buy compressor) |
