XKD-400-2C

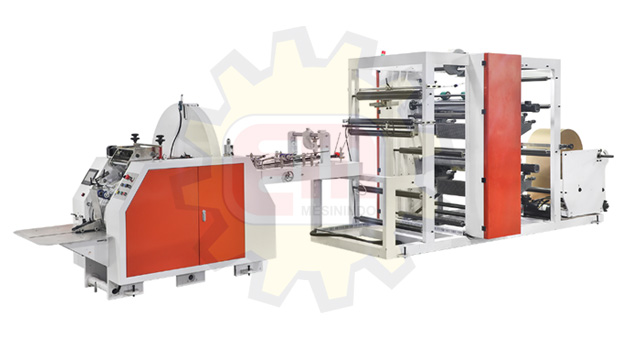

XKD-400-2C Bottom Paper Bag Machine With 2 Color Flexo Printing
This machine is used for primary color paper or printed web paper. It is used to make paper bags with pointed bottom at one time. The machine can be used in various paper bags at high speed and efficiency. It is ideal equipment for paper bag production. This machine is composed of drum feeding (hydraulic feeding, automatic deviation correction, tension adjustment), side gluing, printing paper electric eye tracking, base paper into cylinder, fixed length drawing cutting, bag bottom indentation opening, bag bottom gluing forming, bag out finishing and so on. The whole machine is controlled centrally by PLC touch screen and servo motor controls the length of paper bag.
Features:
- This is our new design food paper bag making machine, which is used for KFC, McDonald’s like chips, bakery and so on.
- Automatic constant tension control for unwinding, Servo Motor system, motor for material feeding with inverter.
- Main motor with inverter.
- When there is no material, the machine automatically stops.
- Open roller gluing forming system.
- Side lay working table, easy operation.
|
Technical Specifications |
|
|
Model |
XKD-400-2C |
|
Paper bag length |
120-450mm(L) |
|
Paper bag width |
70-260mm(W) |
|
Paper thickness |
40-80g/m2 |
|
Machine Speed |
60-500pcs/min |
|
Paper roll width |
200-740mm |
|
Insert Paper Edge |
20-100mm(2M) |
|
Machine power |
7.5kw |
|
Machine weight |
1850kg |
|
Machine size |
4640x1470x1700mm |
