ZBJ-16A

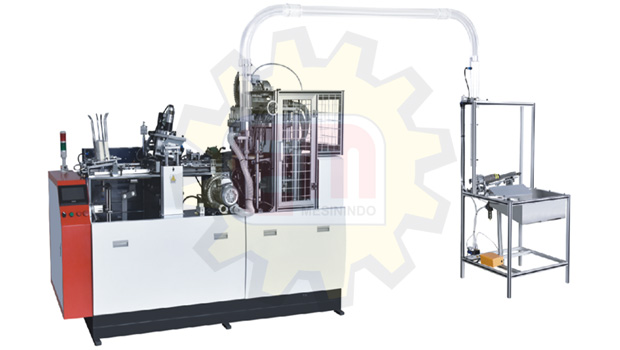

ZBJ-16A Medium-speed Paper Cup Forming Machine
ZBJ-16A Open paper cup machine improves on our selling ZBJ-16A model machine, advanced design and intelligent program, more reliable and durable, competitive price. After running the entire automated multistep procedure, it can make either disposable or double-sided pe membrane-coated paper cups. Pre-print cup fan paper supply (multi-step feeding and back device maintain accurate position), cup body side welding, silicone oil (top coil), robot transfer cup body, bottom plate punching, bottom preheating and pre-folding, main heating, bottom roller (double PE cooling device), top winding, with cup receiver.
|
Technical Specifications |
||
|
Model |
ZBJ-16A (hot seal) |
ZBJ-16A (ultrasonic wave) |
|
Lymphum |
Single-sided PE-coated (hot-sealed) paper cup machine. |
Double PE-coated (ultrasonic sealed) paper cup machine. It works better for hot drinks. It is also better for cold drinks. |
|
Raw and processed material |
150-250 gsm polyethylene coated paper |
150-350 gsm polyethylene coated paper |
|
Installed speed |
80-110 pcs / min |
80-110 pcs / min |
|
Applicable size |
And 40ml- -16 oz |
And 40ml- -16 oz |
|
Weight |
1900 kg |
1900 kg |
|
Aggregate capacity |
12KW |
12KW |
|
General dimension |
2450X1100X1800mm |
2450X1100X1800mm |
|
Working air pressure |
0.4-0.5m3/min |
0.4-0.5m3/min |
|
source |
220VI phase or 380V3 phase 50Hz (preferably using 380V3 phase) |
220VI phase or 380V3 phase 50Hz (preferably using 380V3 phase) |
