GR-800S/GR-900S
GR-800S/GR-900S Semi Auto Case-Maker (Semi Auto Covering Machine)

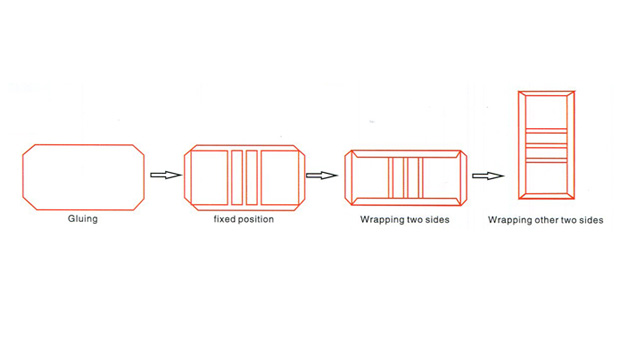

This machine is suitable for various hardcover book, photo album, folder, desk calendar, making the notebook type. For four edge, has divided two times to complete; automatic discharge plate positioning, independent sizing mechanism, the operation is simple and convenient, saving cost; covers an area of small, is the short version of the first packaging printing.
- PLC operating system
- With hot melt adhesive
- Replace fast-conditioners
- Pneumatic foot switch automatically sent to board
|
Technical Specifications |
||
|
Model |
GR-800S |
GR-900S |
|
Power supply |
380V/50Hz |
380V/50Hz |
|
Mainframe power |
6.7kw |
6.7kw |
|
Work speed |
3-6pcs/minute |
3-6pcs/minute |
|
Case size (max) |
760x450mm |
860x450mm |
|
Case size (min) |
140x140mm |
140x140mm |
|
Machine dimension (LxWxH) |
1680x1620x1600mm |
1680x1720x1600mm |
|
Paper thickness |
80-175g |
80-175g |
|
Machine weight |
650kg |
750kg |
