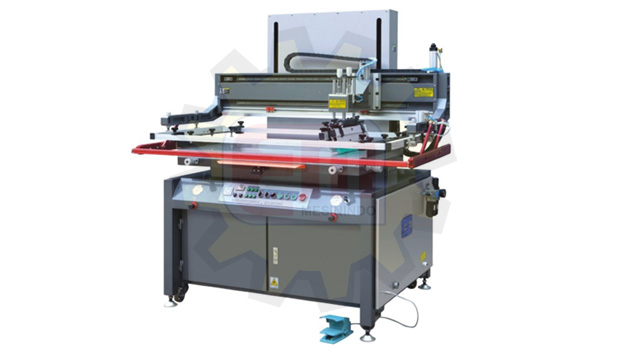

JB Series

Semi Automatic Screen Printing Machine

This machine is not easy to deformation substrates for printing need to design, printing range
Wide and can be used for paper, plastic, glass, ceramic, metal, textile,
Screen printing graphic objects, such as leather, especially suitable for PGB in electronics industry,
Liquid photosensitive plastic, soft PCB \ PCB srviT of solder paste printing.

Technical Spesification
Take-off set    JB-750II    JB-960II    JB-1280II
Max printing dimension 500x700mm 600x900mm 800x1200mm
Max dimension of the frame 800x1160mm 900x1360mm 1100x1660mm
Dimension of the workbench 600x900mm 700x1100mm 900x1400mm
Printing of thickness 0 N 20 mm 0 n 20 mm 0 n 20 mm
Printing speed 1200 pcs/h 1100 pcs/h 900 pcs/h
weigth 600kg 750kg 900kg
Dimension 1500x1080x1700 mm 1700x1180x1700 mm 2000x1380x1700 mm
printing motor 0.2kw 0.2kw 0.4kw
Printing shaft 1.5kw 2.2kw 2.2kw
Power 2.45kw 3.5kw 4.1kw
Wind machine 0.75kw 1.1kw 1.5kw

Rekomendasi Produk

JB-720A Fully Automatic Stop Cylinder Screen Press Machine

JB-720A
Classical stop cylinder mechanism, cylinder stops step automatically to ensure the forehead of the printing stock can be sent accurately to the gripper of cylinder,
JB-800B UV Photo Fixation Machine

JB-800B UV
JB-800 UV photo fixation machine can match with various screen-printing machines and off-set printing machines, solidifying kinds of screen-printing ink. Widely used in screen printing,
JB-1050UVJW UV Curing Machine

JB-1050UVJW
JB-1050UVJW is specially designed for using with automatic screen-printing machine, offset machine and other equipment. It is widely used for dying, dehumidifying and UV curing
JB-800S / 1050S Full Automatic Stacker

JB-800S / 1050S
JB-800S/1050S Full automatic stacker can combine with full-automatic cylinder type screen press and all kinds of dryer together to collect the paper and make them
