PY-950
PY-950 Automatic Roll Die-Cutting & Creasing Machine

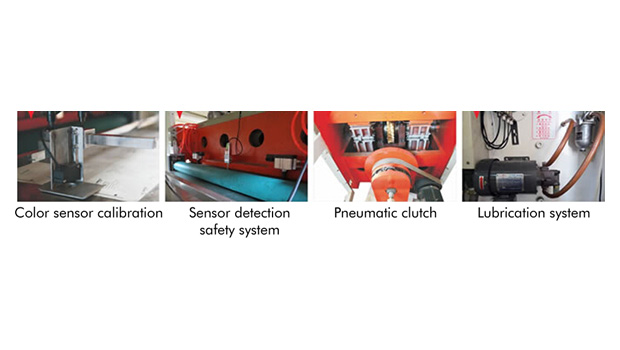

This machine is widely used in printing, packing and paper cup industries. It’s suitable for die cutting and creasing all kinds of paper cup (bowl), cigarette case, medicine paper box, envelope, paper bowl, gift bags and various paper plastic products (also can cut various sizes of corrugated paper). Main electrical components and parts we choose the international famous brands the machine is adopting worm and worm wheel structure, therefore, producing products with high quality, low consumption and high safety it is automatic feeding, color code tracing and precision die cutting. Pneumatic locking knife makes operation and changing mould more easy and convenience.
|
Technical Specifications |
|
|
|
Type |
PY-950 |
PY-1200 |
|
Cut Precision: |
± 0.10mm |
|
|
Production capacity |
90-140 times/min |
80-120 times/min |
|
Maximum cutting size: |
950 x550mm |
1200x650mm |
|
Max Paper Convey Width: |
970mm |
1220mm |
|
Suitable Material: |
100-800g/m2 |
|
|
Maximum Pressure: |
300T |
|
|
Total Power: |
11KW |
|
|
Total Weight: |
7.5T |
9T |
|
Overall Dimension: |
4000 x 2100 x 1850 mm |
4000 x 2400 x 1850 mm |
|
Working Air Source: |
Air pressure 0.5-0.7Mpa (Need to buy compressor) |
|
