SJFM 1000-1800
Double Mainframe Extrusion Film Laminating Machine

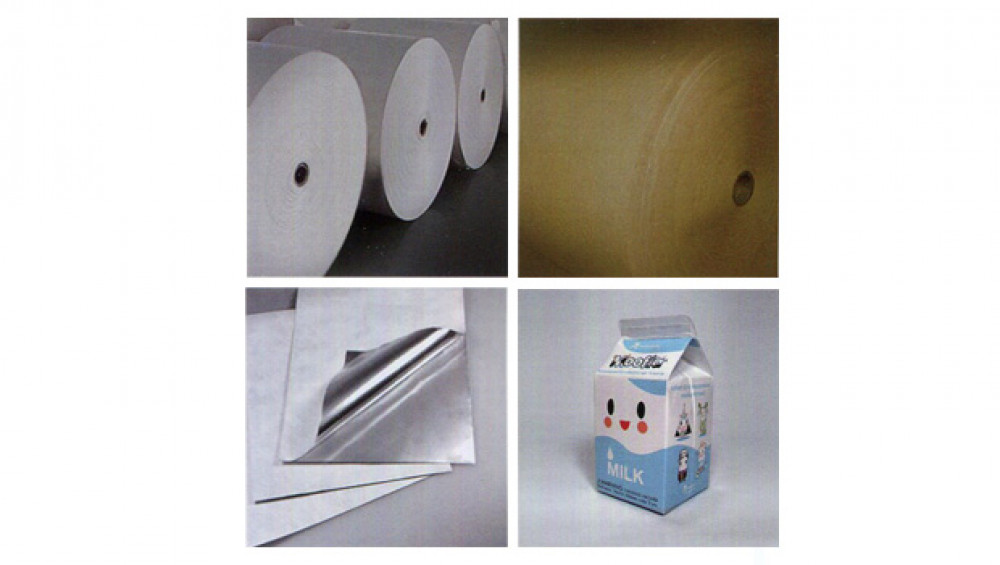

Model of SJFM Double Mainframe Extrusion Film Complex Machinery Unit, it adopted the advanced foreign technology which can finished coating double-side film at a time, this machine is very advanced in China at present. This machine used to coating/laminating products which need coating double-side film, or multilayer at one time, like milk box, syrup box, drink box and etc complex material. It is an ideal equipment which suitable to produce asepsis wrapper.
| Technical Spesification | |||||
|---|---|---|---|---|---|
| Model | SJFM-1000 | SJFM-1100 | SJFM-1300 | SJFM-1600 | SJFM-1800 |
| Compounding speed | 100-150 m/min | ||||
| Net Laminating widht | 500-900 mm | 600-1050 mm | 600-1250 mm | 800-1550 mm | 1000-1750 mm |
| Laminating Layer | 2-4 layer/time | ||||
| Laminating Tickness | 0.010 - 0.1 mm | 0.013-0.1 mm | |||
| Extruding quantity (kg/h) | 10-150/20-150 | 10-180/20-180 | 10-200/20-200 | 10-250/30-250 | 10-280/30-280 |
| Screw L/D ratio | 90 28:1 | 95 30:1 | 105 30:1 | 105 32:1 | 110 33:1 |
| Overall size | 1300x600x300 cm | 1300x700x300 cm | 1300x800x300 cm | 1300x900x300 cm | 1300x1200x300 cm |
| Total Power | 110Kw | 130Kw | 150Kw | 180kw | 200Kw |
