SJFM 800-1800
High-speed Extrusion Film Laminating Machine

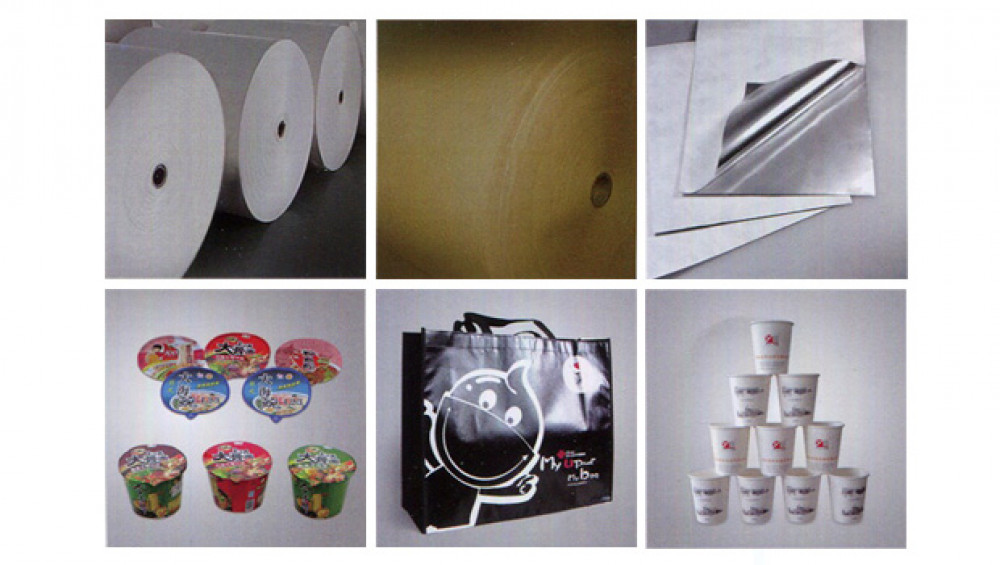

This series of machines, its products use paper/plastic film/woven fabric or aluminum foil as substrate, through coating film one time compounded to be two-layer/three-layer (sandwich composite) or multi layer become new products. This new product used to make packing products, for example: paper cup / drinking cup / ice cream cup / noodle bowl / forage packing bags / adhesive tape / snack box and non-woven bags.
- This machine is adopt PLC man-machine interface centralization of control.
- It’s integrally designed with machine, electricity and gas system.

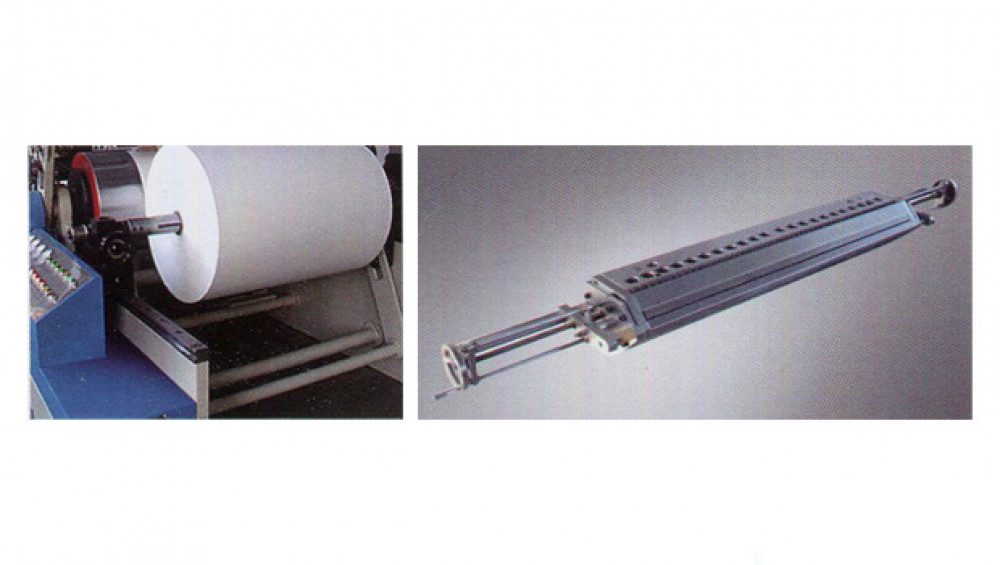

- It is adopt T-die with high precision, high speed and efficient mixing screw, the swift-changer hydraulic screen, the sandwich unwinding frame which can rotate within 360-degree.
- This machine can be suitable assembled with a single extruder, double extruders, multi extruders to realize multi-layer co-extruding.
| Technical Spesification | |||||
|---|---|---|---|---|---|
| Model | SJFM-800 | SJFM-1100 | SJFM-1300 | SJFM-1600 | SJFM-1800 |
| Length of die lip | 900mm | 1200mm | 1400mm | 1800mm | 2000mm |
| Widht of finished product | 400-700 mm | 500-1000 mm | 600-1250 mm | 800-1500 mm | 900-1700 mm |
| Max Compounding speed | 100-150 m /min | ||||
| Tickness of shower film | 0.01 - 0.1 mm | ||||
| L/D Ratio for screw | 80mm x 30 | 90mm x 30 | 105mm x 30 | 120mm x 30 | 140mm x 30 |
| Max diameter for roll unwiding and rewinding | 1300 mm | ||||
| Overall size | 960x600x320 cm | 960x700x320 cm | 960x800x320 cm | 960x900x320 cm | 960x1200x320 cm |
| Power | 60Kw | 70Kw | 80Kw | 100kw | 130Kw |
| Compounding/Glossy cool roll | 510 mm | 610 mm | |||
