Superbinder-200D
Automatic Binding Machinex
Superbinder-200D provides customers with easy set-ups by employing the milling station, the side gluing station, the cover feeding station and the nipping station. At the same time, the cost for a fully integrated servo system is saved.
| Technical Spesification | |
|---|---|
| Model | Superbinder-200D |
| No. of clamps | 4 |
| Max mechanical speed | 2000 cycles/hr |
| Book block length | 140-420 mm |
| Book block width | 120-270 mm |
| Book block tickness | 3-50 mm |
| cover length | 140-420 mm |
| cover width | 245-594 mm |
| Power | 16.93Kw |

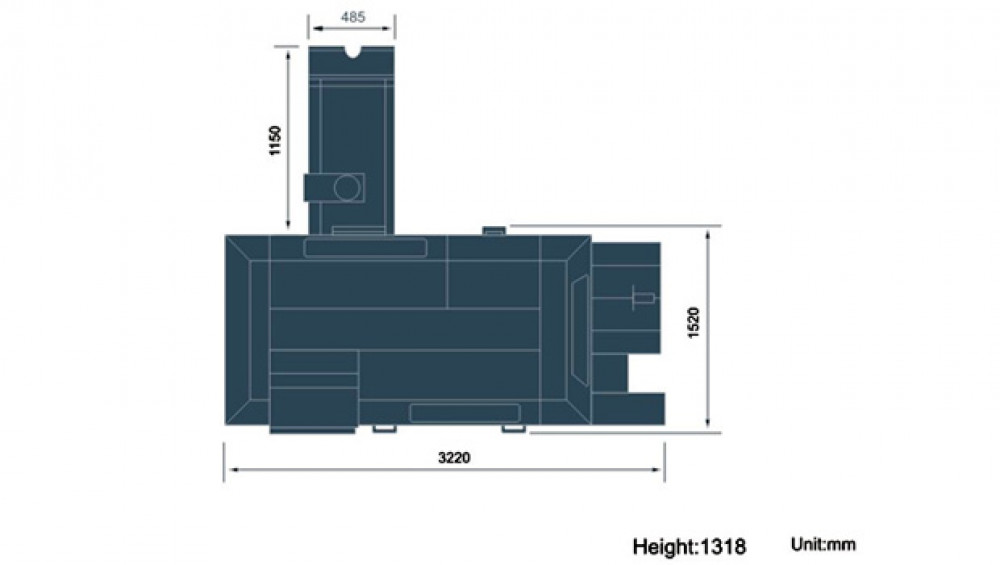

| Machine dimension | 3200x1520x1318 mm |
| Weight | 1900 Kg |
