TY320A

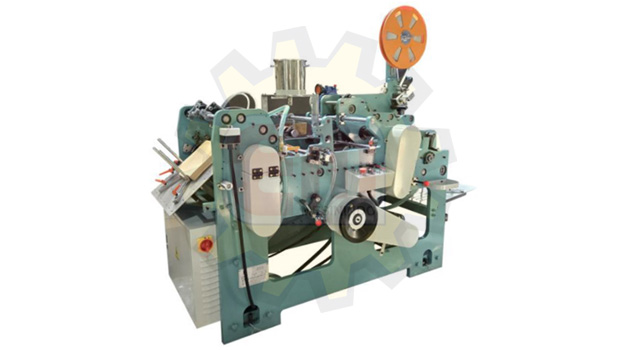

TY320A Peel & Seal Machine
This model machine be feed with paper of envelope, and it can make Pee l& seal (take on glue and patching silicon paper tape) and can patching double side adhesive tape, also it can hot melt with silicon paper tape on sealing flap (optional machine module), then collect.
|
Technical Specifications |
|
|
Model |
TY320A |
|
Working speed |
6000--15000 pcs/h |
|
Paper or finished envelope size |
Max. 380×450mm (width same as Machine) Min. 110×120mm (width same as machine) |
|
Thickness of paper |
70-157g/m2 |
|
Tape Width |
5-25mm |
|
Tape Length |
120-320mm |
|
Hot Melt Applicator |
Power, 3kw Capacity, 7L (optional machine module) |
|
Motor power |
1.5kw |
|
Power of vacuum pump |
3kw |
|
Weight of machine |
1400 kg |
|
Overall dimension |
2100×1050×1700 mm (L×W×H) |
