HH-130

Disc (CD) & Paper Bag Pasting Machine

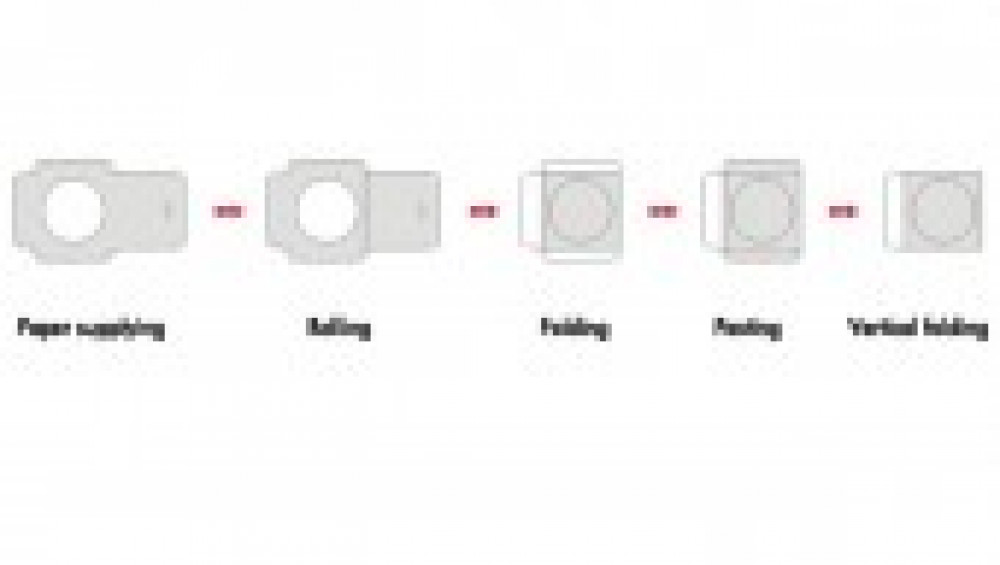

Air suction type reliable bottom paper-extracting structure is available to supply paper constantly. It is convenient to adjust paper position system and locate correctly. Follow quadrilateral rolling, strengthen accuracy and shorten error. Completed with air suction roller and barrier system, it is available to accomplish double fold correctly and quickly. Rotary paste supplying is suitable to convert envelopes swiftly and stick paper bags. Electronic counter may control finished products by group for easy use of package.
Technical Specification
Model HH-130
Maximum working velocity 12000 pcs/hr
Applicable paper ration 80-157g/m2
Minimum finished product 85 x 85 mm
Maximum finished product 125 x 125mm
Motor power 1.1 kw
Air pump power 2.2 kw
Machine weight 1200 kg
Dimension 2850 x 850 x 1450 mm
