67

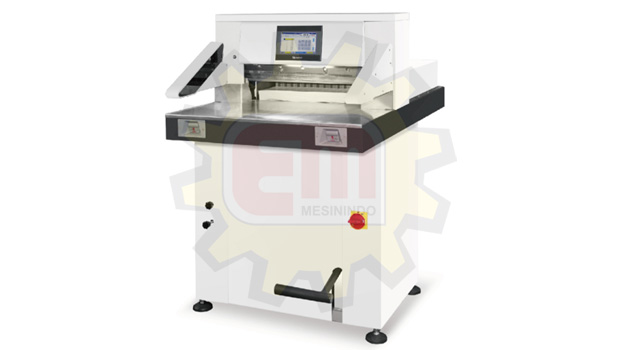

Full Hydraulic Program Control Paper Cutter Machine
The knife and clamp bar is controlled by hydraulic cylinder, the fully hydraulic transmission make machine more safe and the imported hydraulic ensure the system stability. It has the benchmark setting, save and self-diagnostic function. The widen working table are all chrome-plated with air ball; imported IR photoelectric protection, button by two hands safety devices; precise guide of paper impeller, aiming at back paper stopper with high angle precision.7 inches colorful display screen, the resolution rate is 0.01mm,it has self-diagnostic function of troubles and displays the operating pattern, 100 program units, over than 10000 different cutting position, dynamic follow-up. The max paper-pushing is 5-10m/min. It adopts imported hydraulic components, Japan, Korea electric components, imported bearing of low maintenance.

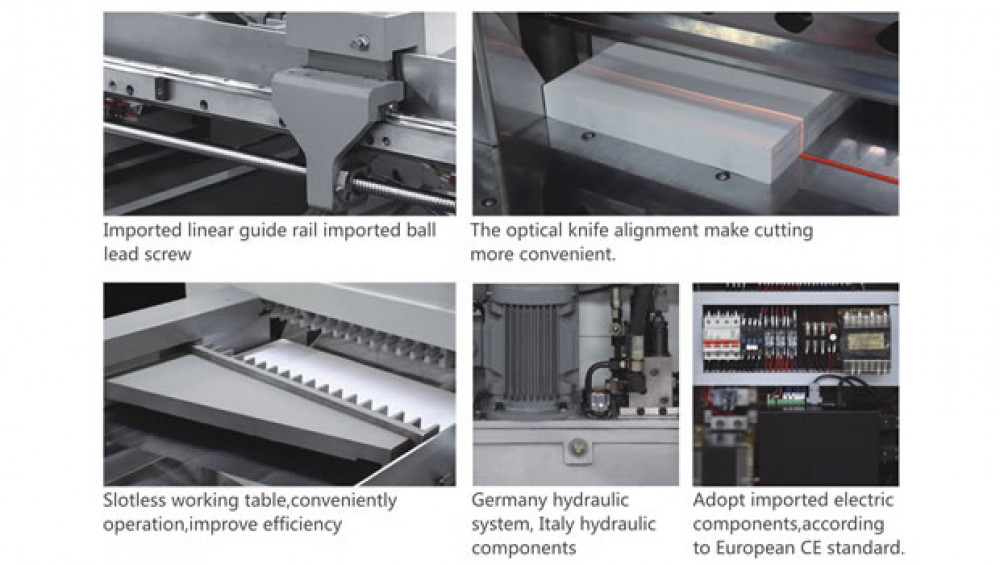

- The machine body and slot less working table casting by resin sand
- Imported ball lead screw, linear guide rail and slot less working table technology
- Chrome-plated working table
- Whole hydraulic system
- Safety IR sensor protection device
- German technical hydraulic system
- Original imported hydraulic pumps and valves
- Paper feeding by servo system
- Adopt imported computer program system
|

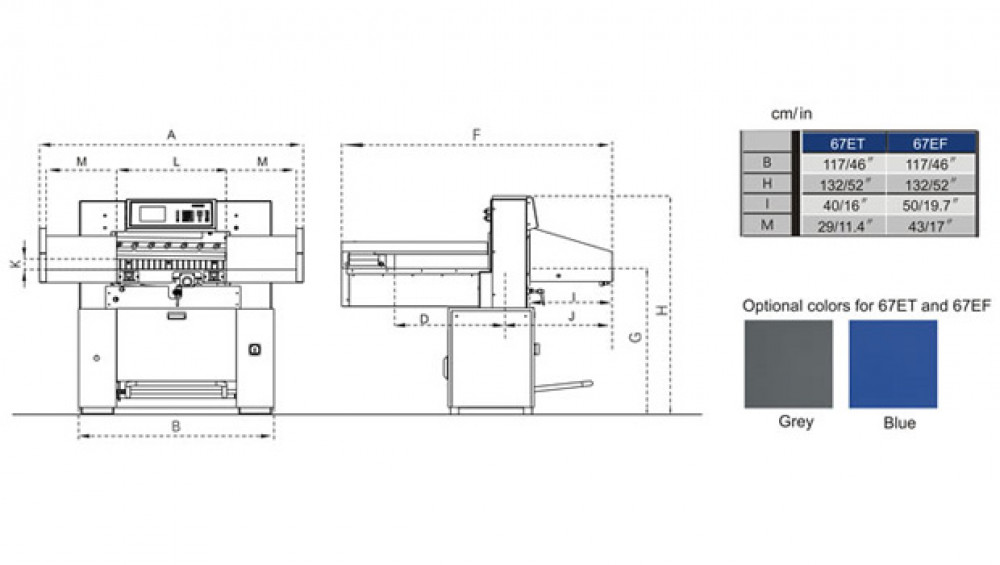

Model |
|
|
67ET |
67EF |
|
Cutting width |
L |
Cm/In |
67/26.4” |
67/26.4” |
|
Max. cutting height without assistance pressing plate |
K |
Cm/In |
8/3.15” |
8/3.15” |
|
Max. cutting depth |
D |
Cm/In |
67/26.4” |
67/26.4” |
|
Min cutting depth without assistance pressing plate |
|
Cm/In |
2/0.8” |
2/0.8” |
|
Extended length of working table |
J |
Cm/In |
53/20.9” |
65/25.6” |
|
Height of working table |
G |
Cm/In |
88.2/34.7” |
88.2/34.7” |
|
Machine width including side working table |
A |
Cm/In |
125/49.3” |
153/60.3” |
|
Total length of working table |
F |
Cm/In |
150/59” |
162/63.9” |
|
Cutting speed |
|
r/min |
20 |
20 |
|
Max. paper pressure |
|
N |
20000 |
20000 |
|
Power of main motor |
|
Kw |
1.5 |
1.5 |
|
Motor for paper feeding |
|
Kw |
0.37 |
0.37 |
|
Air pump |
|
Kw |
/ |
0.25 |
|
Machine weight |
|
Kg |
650 |
720 |
|
Overall dimension (LxWxH) |
|
Cm |
173x145x165 |
185x173x165 |
|
Blade specification (LxWxH) |
|
Cm |
78x10.3x1.0 |
78x10.3x1.0 |
