DB-470A

DB-470A Full-Automatic Plastic Thermoforming Machine

DB-470 series automatic thermoforming machine, as the first domestic new-type machine, is researched and developed by our scientific researcher according to the market demands and our past production technology. This machine is a multi-station automatic machine, which solve the problems of food packaging hygienic standards. It not only solves a lot of problems effectively in the production of PP, PS, PET, PVC and PLA plastic products, such as large capital investment, large labor input, complicated production process, lower hygienic security, etc, but also has extensive usage. It can be used in the production of PP, PS, PET, PVC, PLA plastic products using in metals, food, pharmaceutical, etc. The machine enjoys beautiful appearance and good price. It is popular with the customers at home and abroad!

Applications:

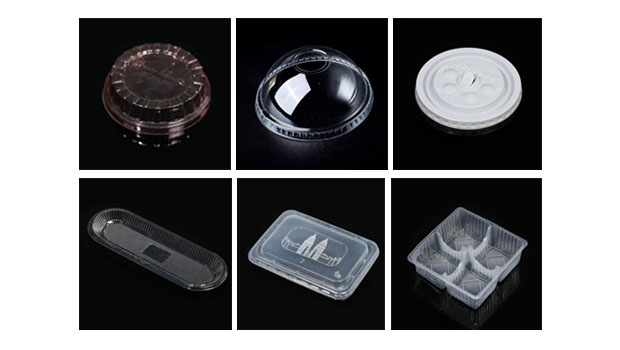

PLA, PVC, PET, PS, PP as raw materials, changing the mold at one machine to manufacturing lids,

covers, trays, plates, boxes, food and medical trays, etc.

Technical Specifications

Model

DB-470A

Suitable Products

Disposable Plastic lids, clamshell boxes, plates, (egg) trays, etc.

Suitable Material

PP, PS, PET, PVC, EPS and PLA

Max. Width of Material

510mm

Max. Forming Width

470mm

Max. Forming Length

260mm

Max. Forming Depth

50mm

Max. Cutting Speed

10-35 Cycles/min

Material Thickness

0.1mm-1.5mm

Power

380V/ 50HZ (Three-phase and four-wire)

Pressure of Water Supply

0.2MPa

Water Consumption

0.3m3/h (Tap water or Circulating cooling water)

Air Exhaust Volume

≥0.8m3/min

Air Pressure

0.6-0.8MPa

Machine Install Size

5000×1600×2000mm

Machine Packing Size

4700×1680×2100mm

Weight

3500KG
