LS-1300

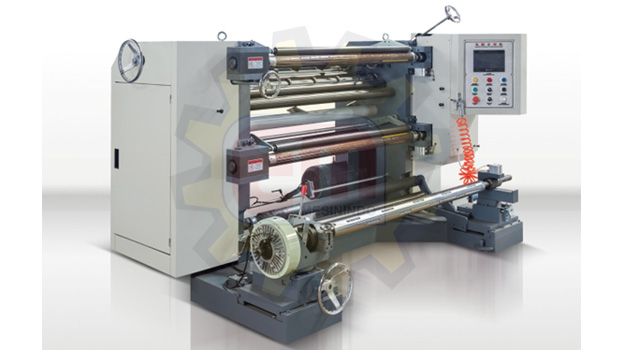

LS-1300 Slitter and Rewinder Machine
This machine is applicable to slitting of various roll materials such as BOPP, PET, CPP, CPE, PVC, etc., and trimming and slitting of materials according to different needs in the production process.
Features:
- The machine adopts DC motor to maintain smooth operation during acceleration; (Variable frequency speed regulation can also be adopted)
- Automatic meter counting, alarm, and other functions.
- The winding adopts A and B air expansion shaft structure, which is convenient for loading and unloading.
- Unwinding adopts photoelectric automatic deviation correction system to enable irregular materials to be cut normally
- Automatic discharge device for flat knife slitting waste edge
- Manual feeding, air expansion shaft (key bar type) 3 inches.
|
Technical Specifications |
|
|
Model |
LS-1300 |
|
Width |
1300 |
|
Deviation |
±0.5mm |
|
Cutting thickness |
20g-300g/m2 |
|
Cutting accuracy |
±0.5mm |
|
Speed |
10-150m/min |
|
Total power |
5kw |
|
Machine color |
The body color is gray, and the cover is white (other colors are optional) |
|
Automatic photoelectric correction |
depending on different raw materials and customer specific requirements) |
|
Maximum diameter of raw material unwinding |
Φ500mm |
|
Maximum diameter of raw material rewind |
Φ500mm |
|
The maximum width of raw materials |
1250mm |
|
Air shaft |
φ76mm |
|
Number of simultaneous rewind shafts |
2 (single shaft reeling is allowed) |
|
weight |
1200kg |
|
Overall size: |
1300x2270x1300mm |
