DH-HSJP-550/650
High-Speed Print Quality Inspection Machine For Small-Format Pharmaceutical Packets and Color Cartons Machine

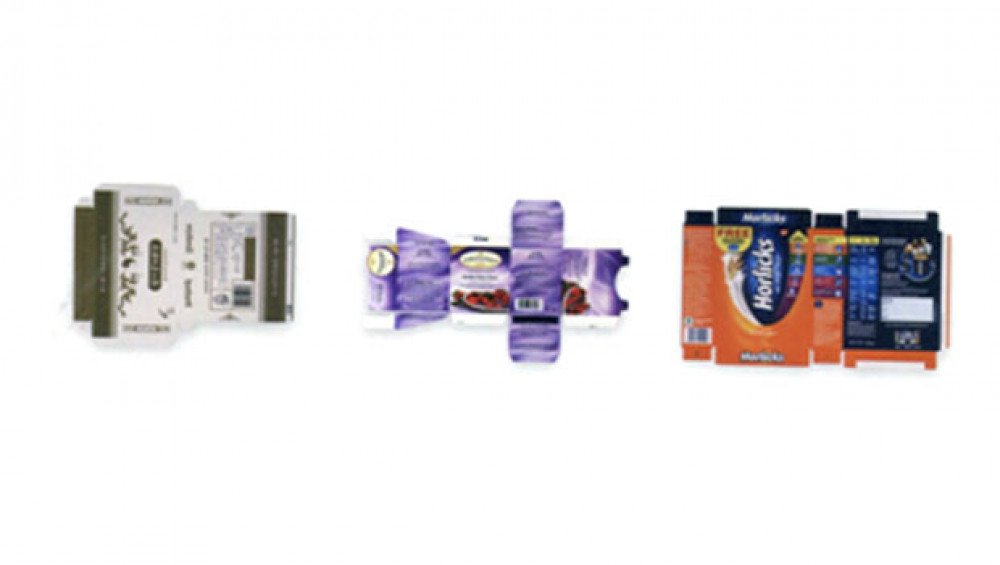

DH-HSJP 550/650 is a sheet-fed inspection machine designed to inspect the print quality of pharmaceutical packets and color cartons or packs commonly used in various industries.
- Versatile inspection, supporting both detection of defects in surface printing processes and data validation/completeness checking of supervision codes and 2D codes.
- Proven designs such as integrated console and complete equipment protection, making the human-machine interaction safer and more convenient
- Anti-scratch solutions:
- Optional suction feeder is available and can be easily replaced to guarantee inspection speed
- Innovative design of delivery module to completely avoid scratches on the surface of prints
|
Technical Specifications |
||||
|
Model |
DH-HSJP550 |
DH-HSJP650 |
DH-HSJP800 |
DH-HSJP1100 |
|
Max. sheet size (LxW) |
550x400mm |
650x500mm |
800x500mm |
1100x500mm |
|
Min. sheet size (LxW) |
90x90mm |
100x100mm |
150x120mm |
150x120mm |
|
Paper quality |
90-350g/m?2; |
90-350g/m?2; |
180-450g/m?2; |
180-450g/m?2; |
|
Max. delivery speed |
300m/min |
270m/min |
240m/min |
240m/min |
|
Min. defect size (as a point) |
0.15mm?2; (contrast ? 20) |
0.2mm?2; (contrast ? 20) |
0.1mm?2; (contrast ? 20) |
0.15mm?2; (contrast ? 20) |
|
Min. defect size (as a line) (WxL) |
0.15x5mm (contrast ? 20) |
0.2x5mm (contrast ? 20) |
0.1x5mm (contrast ? 20) |
0.15x5mm (contrast ? 20) |
|
Min. registration deviation detected |
±0.15mm |
±0.2mm |
±0.1mm |
±0.15mm |
|
Min. color variances detected (? E) |
? E? 3 |
|||
|
Supervision code validation |
Check for repetition, absence, and errors of codes |
|||
|
Supervision code completeness checking |
Defect width ? 0.1mm, bar dirt, bar corner missing, code missing, code dirt, registration deviation, etc |
|||
|
Accepted products handling |
Shingle stream module, counting module |
|||
|
Rejected products handling |
Shingle stream module |
|||
|
Dimension (LxWxH) |
6500x1160x1880mm |
6500x1380x1880mm |
6500x1380x1880mm |
6500x1710x1930mm |
|
Floor space (LxWxH) |
6500x2640x1880mm |
6500x2860x1880mm |
6500x2860x1860mm |
6500x3190x1930mm |
|
Gross weight |
3700kg |
4000kg |
4100kg |
5300kg |
|
Total power |
15.5kW |
16.5kW |
18.5kW |
30kW |
