JBZ-M8

Long Tube Cup Forming Machine

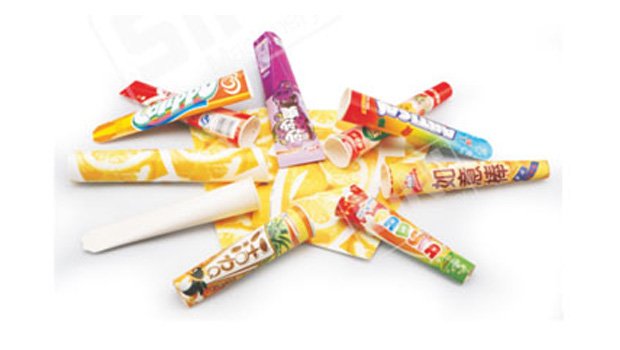

JBZ-M8 series long tube cup forming machine is a rotary multi station full-automatic machine through continuous process of automatic paper feed, medium sealing tube forming, hemming, bottom preheating, bottom lamination, bottom cutting and product stacking. It is featured by high finished product speed, good quality and attractive appearance.

Technical Specifications

Model

JBZ-M8

Forming specification

Outer diameter of mouth ?35mm~ ?60mm\ Conicity 2o~6omm\ height 150~220mm

Paper material

PE coated paper

Paper specification

180g/m2~240g/m2 (allowable thickness range of same die paper: ±0.03mm)

Production capacity

32-45 (pcs/min)

Power supply

380V/50Hz

Total power

7.5kw

Weight

1300kg

Packing size (LxWxH)

2450x1260x2000mm
