JMQ-930
High Speed Reel Paper Die Cutting Machine
Our high speed reel paper die cutting machine is manufactured for cutting various kinds of paper such as PE coated paper. It is used in printing, packaging, paper cup manufacturing, etc. Driven by a step motor, reel paper is automatically fed to the die-cutting area. It is equipped with a built-in touch screen which allows the cutting length to be adjusted. The pneumatic clutch largely improves the cutting speed and reliability. The high speed reel paper die cutting machine is suitable for both blank and printed paper.

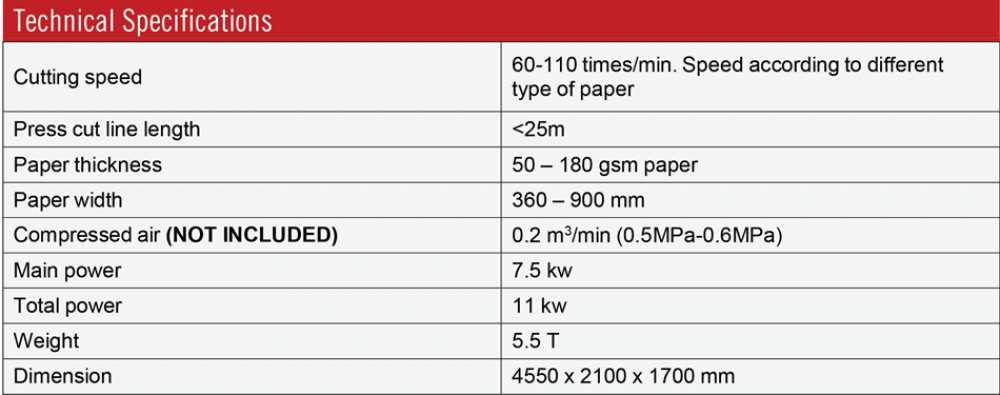

| Technical Specification | |
|---|---|
| Cutting speed | 60-110 times/min. Speed according to different type of paper |
| Press cut line length | <25m> |
| Paper thickness | 50 - 180 gsm paper |
| Paper width | 360 - 900mm |
| Compressed air (NOT INCLUDED) |
0.2 m3/min (0.5MPa-0.6MPa) |
| Main power | 7.5 kw |
| Total power | 11 kw |
| Weight | 5.5 T |
| Dimension | 4550x2100x1700mm |
