KFQ-3000

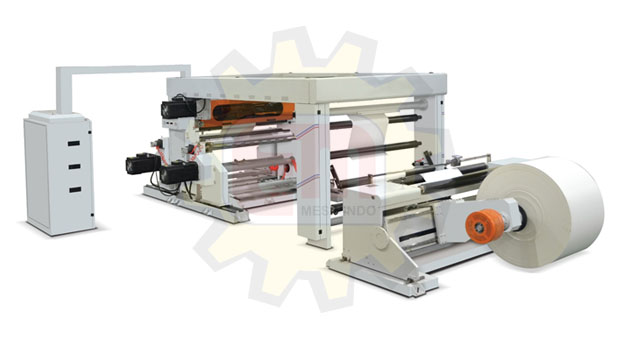

KFQ-3000 Bare Frame Style Automatic Slitting and Rewinding Machine. Adopts shaftless hydraulic fixing system, easily for one-person operation. Automatic traction device adopts pneumatic pressure way.

Features:

Unwinding Part

1. Adopts shaftless hydraulic fixing system, easily for one-person operation. Using special conic node system from 3” to 6” for durable using. The 2 sides clamping arm are controlled by the hydraulic dovetail groove linear guideway. 2pcs of hydraulic clamping oil cylinder moves to each side at the same time, easily operation.
2. 2pcs of hydraulic type loading and unloading material oil cylinder can bear 5T material to save the manpower and time.
3. It does not need to input the material thickness; the proximity switch can inspect the unwinding diameter directly which near the transmission shaft. The machine can slow down according to the rest material, in this way, the worker can prepare for the next roller. The unwinding tension adopts the sensor close-cycle automatic tension, controlled by PLC.
4. With the manual adjustment system, the unloading material tightness can be controlled. The adjustable range: +/-20mm
5. Automatic error-correction for the edge position is controlled by the system. The whole frame adopts guide way type to move left and right which driven by the servo motor. The moving part uses thread screw.
6. Bridge type feeding materials
7. The unwinding adopts the Italy pneumatic braking. Precision proportional valve use SMC



Main Body Part

1. The bare frame uses the 80# casting material, easily for dismounting and transportation.
2. The transmission combines the servo motor with synchronous wheel speed ratio.
3. Automatic traction device adopts pneumatic pressure way. The servo motor drives the mirror roll.
4. Close-cycle vector control.



Rewinding Part

1. With double structure of surface rolling and center rolling, rewinding by front and back (A/B shaft), double air shaft way (also can be single rewinding).
2. Clamping arm uses imported dovetail groove linear guideway
3. The rewinding shaft clings to the steel shaft (the steel shaft is driven)
4. Each bearing with 1 set of 22KW servo motor to drive the air shaft. The tension decided by the roll diameter. PLC controls frequency converter automatically to adjust the tension of the air shaft to make all the sheet same thickness when do the multiple slitting. Because of the press roller, all the reels end face is smooth. it has the choice of pneumatic press roller and self-weight press roller. The degree of the tightness of the finished products can be adjustable. With the increasing of the rewinding diameter, the servo motor speed goes down to extend the life of the air shaft.
5. It also can choose the whole shaft tension and the servo motor in torque control mode in PLC
6. Discharging type: automatic hydraulic
7. Wastepaper recovery device: Using motor to blow out the wastepaper more than 20m. (also can choose the automatic tatter function,). The net cage should be prepared by customer.



Technical Specifications
Model	KFQ-3000
Material type	white board paper, carbon-free paper, coated paper, two-side offset paper, etc.
Material thickness	100-350g (paper)
Max. Diameter of raw material	1800mm
Raw material paper core	3#, 6# paper tube; (can be increased to 12 inches)
Max. Width of raw material	3000mm
Minimum width of raw material	800mm
Roller surface width	3050mm
Width of slitting	100-3000mm
Rewinding paper core	3#, 6#
Max diameter of rewinding	1500mm
Error-correction length	150mm
Precision	±0.15mm
Max. Speed	350m/min
Slitting speed	10---350m/min
Total power	68KW
Total weight	23000kg
Dimension	length 7500mm, width 5200mm, height 2300mm
Slitting tools	30 sets for standard, also can do according to customer’s requirement.
Upper slitter dimension	Φ160mm
Bottom round cutters dimension	Φ150mm
Rewinding shaft	with 2 pcs of 3#, 6#ir shaft
This equipment is with	15pcs if Φ120 aluminum roller, 1pcs of rubber roller and 1pcs of steel roller. With 2pcs of round cutter shaft.
