PK1209

PK automatic intelligent cutting system adopts fully automatic vacuum chuck and automatic lifting and feeding platform. Equipped with various tools, it can quickly and precisely make through cutting, half cutting, creasing, and marking. It is suitable for sample making and short-run customized production for Signs, Printing and Packaging industries. It is a cost-effective smart equipment that meets all your creative processing.

Features:

1. High frequency electronic oscillating knife

Material can be more various and thicker, to meet different cutting requirements.

2. Combine intelligent cutting/creasing/drawing functions-meet all your creative processing demands

Cut labels of any shape, cutting, creasing any cardboard carton type.

3. Precise automatic positioning system

With high-definition CCD camera, it realizes automatic and precise positioning of various materials, automatic contour cutting, solving problems of manual positioning and printing deformation, so as to achieve simple and precise cutting purposes.

4. Barcode Management System

Scanning barcodes allows quick reading of cutting task.

5. Automatic feeding system

Fully automatic feeding system makes the production more efficient.





Technical Specifications
Cutting Head Type	PK Pro	PK Pro Max
Machine Type	PK1209 Pro	PK1209 Pro Max
Cutting Area (L*W)	1200x900mm
Flooring Area (L*W*H)	3200x1500x1150mm
Cutting Tool	Universal cutting tool, creasing wheel, kiss cut tool	Oscillating tool, universal cutting tool, creasing wheel, kiss cut tool

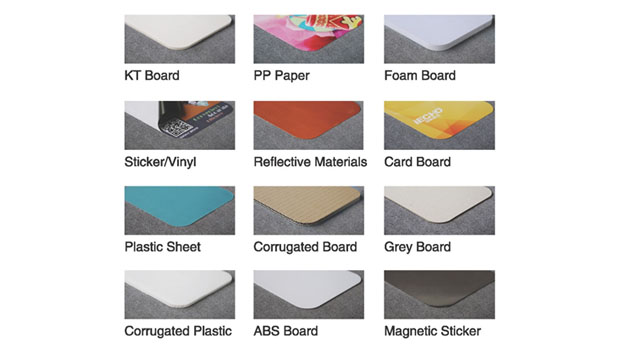

Cutting Material	Car sticker, sticker, card paper, PP Paper, reflective material	KT board, PP Paper, foam board, sticker, reflective material, cardboard, plastic sheet, grey board, corrugated plastic, ABS board, magnetic sticker
Cutting thickness	≤ 10mm
Media	Vacuum system
Max cutting speed	1000mm/s
Cutting accuracy	± 0.1mm
Data format	PLT, DXF, HPGL, PDF, EPS
Voltage	220V ± 10% 50Hz
Power	7kw
