SOLD OUT
QFM-460

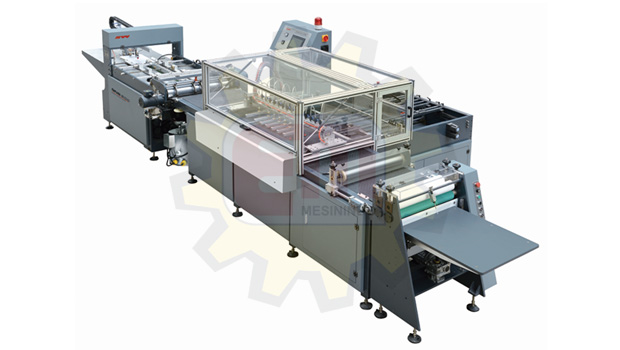

Automatic Case Making Machine
QFM-460 New automatic lining machine used to make lining for perfect book covers, cover of notebook, calendars, hanging calends, cover of box, file etc.
- It adopts high speed automatic paper feeding system, which is controlled pneumatically, and its structures simple and reasonable.
- New designed copper scraper cooperates with the rubber more compactly, effectively avoiding paper winding. And the copper scraper is more durable.
- New designed cooper scraper cooperates with the rubber more compactly, effectively avoiding paper winding. And the copper scrapper is more durable.
- Paper feeding and positioning system adopt imported high precise photoelectric control device to make paper and cardboard location more accurate.
- It adopts PLC control, featuring in simple operation. The troubles are displayed directly on the HMI, which helps the operator easily remove them.
|
Model |
QFM-460 |
|
Length of paper |
230-830mm |
|
Width of paper |
140-480mm |
|
Thickness of paper |
80-200g/m2 |
|
Thickness of cardboard |
1-3mm |
|
Min width of spine |
8mm |
|
Working Speed |
0-25pcs/min |
|
Dimension |
L7500 x W2000 x H1500mm |
|
Power supply |
18kw |
|
Weight |
2500kg |
