QNB-460
QNB-460 Automatic Lining Machine
QNB-460/600 New Automatic Lining machine used to make lining for perfect book covers, cover of notebook, calendars, hanging calends, cover of box, file etc

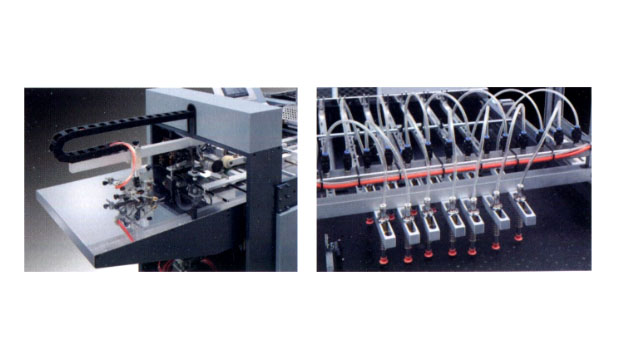

- It adopts high speed automatic paper feeding system, which is controlled pneumatically, and its structures simple and reasonable.
- New designed copper scraper cooperates with the rubber more compactly, effectively avoiding paper winding. And the copper scraper is more durable.
- New designed copper scraper cooperates with the rubber more compactly, effectively avoiding paper winding. And the copper scraper is more durable.
- Paper feeding and positioning system adopt imported high-precise photoelectric control device to make the paper and cardboard location more accurate.
- It adopts PLC control, featuring in simple operation. The troubles are displayed directly on the HMI, which helps the operator easily remove them.
|
Technical Specifications |
|
|
Model |
QFM-460 |
|
Width of paper |
140-480mm |
|
Thickness of paper |
80-200g/m2 |
|
Thickness of cardboard |
1-3mm |
|
Working Speed |
0-30pcs/min |
|
Power |
16kw |
|
Weight |
2000kg |
|
Dimension |
L4900xW2150xH1500mm |
