QZYK-S
Program-Controlled Paper Cutter Series Machine
7.0 inches color screen, the data resolution 0.05MM, fault self-diagnostic function and operation of model showed that 60 program group, more than 6000 different locations of the crop, can be dynamic tracking, the maximum speed of 5-10 meters push paper / min, selected imports of hydraulic components, Japan, Korea Electric components, the use of imported low-maintenance bearings.
- Linear guide-rail makes paper impeller run smooth, low noise, accurate positioning, enhance the cutting precision and speed greatly, prolong the service lift of
- paper cutter.
- The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof. Large side working table (1000*800) is optional.

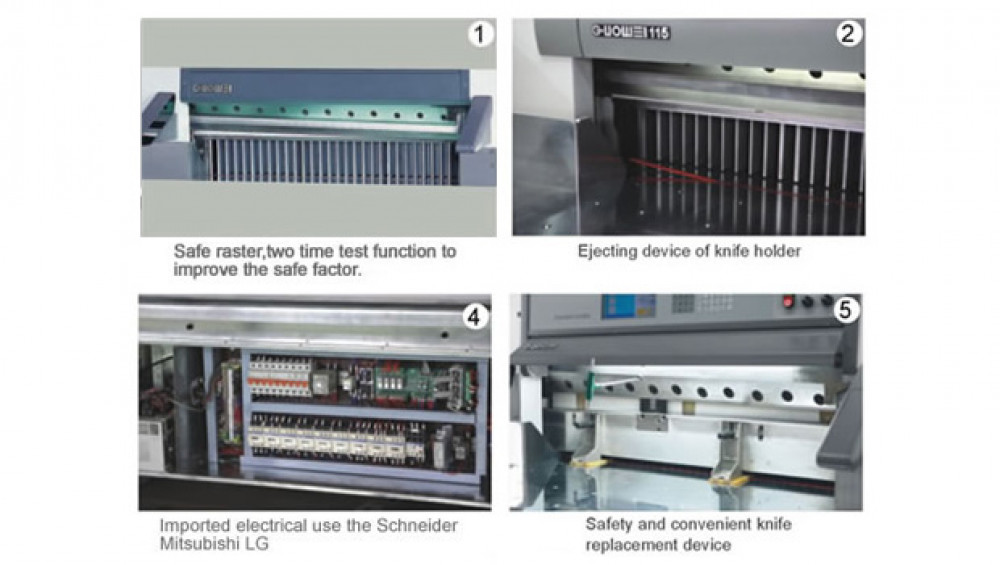

- IR photoelectric protection, buttons by two hands safety devices.
- Safety device for knife bed, overloading protection for cutting, automatic return safety device.
- Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted. The paper is pressed twice by pressure-increased system.
- Mechanical assistance device for knife replacement makes knife replaced quickly and safely.

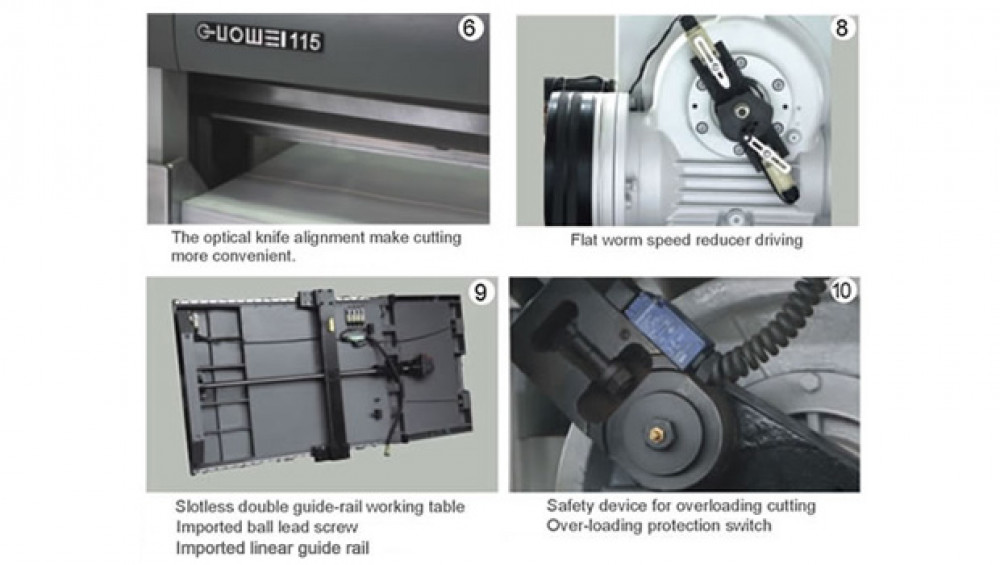

- Equipped with the optical knife alignment to make cutting more convenient.
- Ejecting device for knife bar.
- Flat worm speed reducer transmission.
- Carry on the block programming operation through the figures and diagrams operation manual.
|
Model |
|
|
92CG |
78 |
92 |
115 |
130 |
137 |
155 |
166 |
186 |
|
Cutting width |
L |
Cm/In |
92/36.2” |
78/30.7” |
92/36.2” |
115/45.3” |
130/51.2” |
137/54” |
155/61” |
166/65.4” |
186/73.2” |
|
Max. cutting height without assistance pressing plate |
K |
Cm/In |
11/4.3” |
13/5.1” |
13/5.1” |
16.5/6.5” |
13/5.1” |
16.5/6.5” |
16.5/6.5” |
16.5/6.5” |
16.5/6.5” |
|
Max. cutting depth |
D |
Cm/In |
93/36.5” |
78/30.7” |
93/36.5” |
115/45.3” |
130/51.2” |
145/57” |
155/61” |
166/65.4” |
195/76.8” |
|
Min cutting depth without assistance pressing plate |
|
Cm/In |
2.5/1” |
2.5/1” |
2.5/1” |
3/1.2” |
3/1.2” |
3/1.2” |
3/1.2” |
3/1.2” |
3/1.2” |
|
Extended length of working table |
J |
Cm/In |
65/25.6” |
64/25.2” |
65/25.6” |
73/28.7” |
73/28.7” |
74/29.1” |
75/29.5” |
75/29.5” |
75/29.5” |
|
Height of working table |
G |
Cm/In |
86/33.9” |
86.5/34” |
86.5/34” |
89/35” |
86.5/34” |
91/35.5” |
90/35.5” |
90/35.5” |
90/35.5” |
|
Machine width including side working table |
A |
Cm/In |
192/75.6” |
215/84.6” |
233/91.7” |
266/104.7” |
266/104.7” |
287/113” |
314/123.6” |
322/126.8” |
375/147.6” |
|
Total length of working table |
F |
Cm/In |
198/78” |
178/70” |
198/78” |
226/89” |
241/95” |
259/102” |
280/110.2” |
283/111.4” |
355/139.7” |
|
Cutting speed |
|
r/min |
30 |
45 |
45 |
45 |
45 |
45 |
42 |
42 |
40 |
|
Max. paper pressure |
|
N |
30000 |
30000 |
35000 |
40000 |
40000 |
45000 |
55000 |
60000 |
65000 |
|
Power of main motor |
|
Kw |
2.2 |
3 |
3 |
4 |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
|
Motor for paper feeding |
|
Kw |
0.37 |
0.37 |
0.37 |
0.55 |
0.55 |
0.55 |
0.75 |
0.75 |
0.75 |
|
Air pump |
|
Kw |
0.55 |
0.55 |
0.55 |
0.75 |
0.75 |
0.75 |
0.75X2 |
0.75X2 |
0.75X2 |
|
Machine weight |
|
Kg |
2200 |
2600 |
2900 |
4600 |
3900 |
4500 |
5000 |
5500 |
6600 |
|
Overall dimension (LxWxH) |
|
In |
90x56x73” |
83x56x77” |
89x56x77” |
101x63x85” |
103x61x77” |
111x63x85” |
117x65x85” |
124x63x85” |
134x72x91” |
|
Blade specification (LxWxH) |
|
In |
43.3x5x0.5” |
37.8x5x0.5” |
43.3x5x0.5” |
54.7x6.3x0.54” |
59.8x5x0.5” |
63.2x6.3x0.54” |
70.3x6.3x0.54” |
75x6.3x0.54” |
83.5x6.3x0.54” |
