QZYW-ET

Paul new high-speed cutter, the wait is expected figures in Japan to exchange control system, 10.4-inch color LCD display. Data resolution of 0.01mm, and fault diagnosis capabilities of self-functioning model shows that 100 program group, more than 10,000 cut at different positions, dynamic display of cutting and running, dynamic tracking, the maximum speed of pushing paper 5-18 m / min, a more powerful computer operating system may be memory, storage, memory storage time of up to 300,000 hours above, and self-maintenance of the operating system.

1. Ball lead screw and linear guide-rail makes paper impeller run smooth, low noise, accurate positioning, enhance the cutting precision and speed greatly,
2. prolong the service lift of paper cutter.
3. The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof. Large side working table (1000*800) is optional.
4. IR photoelectric protection, buttons by two hands safety devices.
5. Safety device for knife bed, overloading protection for cutting, automatic return safety device.
6. Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted. The paper is pressed twice by pressure-increased system.
7. Mechanical assistance device for knife replacement makes knife replaced quickly and safely.

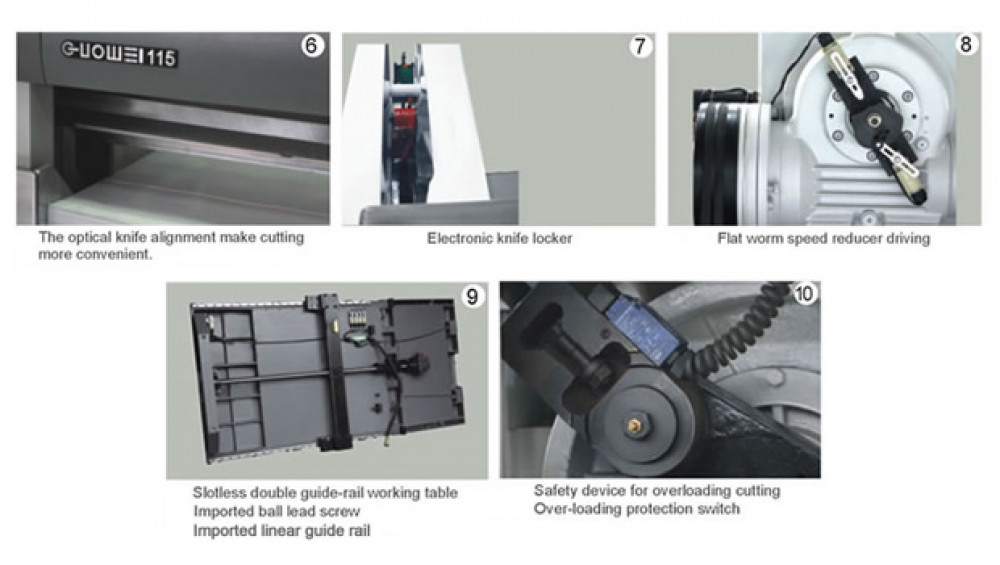

8. Equipped with the optical knife alignment to make cutting more convenient.
9. PLC control system.
10. Ejecting device for knife bar.
11. Flat worm speed reducer transmission.
12. Inside electronic knife locker to make the cutting more safety and stable.
13. Multination language operation interface.
14. Carry on the block programming operation through the figures and diagrams operation manual.
15. Safety device for overloading cutting.
16. Safety locker of press bar.
