SHH-800
Automatic Folder Gluer Machine
SHH model automatic folder gluer machine belongs to economic type product, with broad usage and flexible debug.It can paste various boxes, such as the medicine box cosmetics box and the samller box such as match boxes etc.The min widest can make 70MM open size of the boxes.

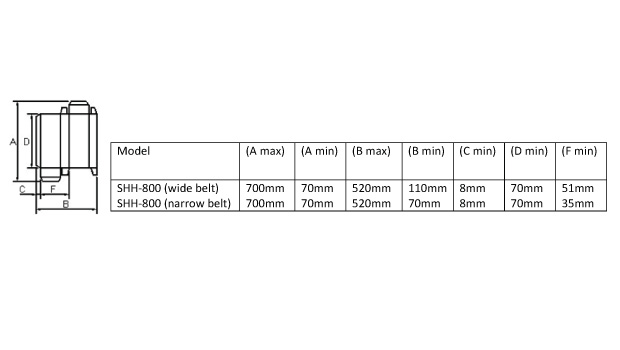

| Model | (A max) | (A min) | (B max) | (B min) | (C min) | (D min) | (F min) |
|
SHH-800 (wide belt) SHH-800 (narrow belt) |
700mm 700mm |
70mm 70mm |
520mm 520mm |
110mm 70mm |
8mm 8mm |
70mm 70mm |
51mm 35mm |
| Technical Specifications | |
|---|---|
| Model | SHH-800 (wide belt) / SHH-800 (narrow belt) |
| Linear velocity | 0~220m/min |
| Suitable paper quality | 220~800g/m2 cardpaper |
| Paste box basic form | One-side edge pastes, two-side edge pastes |
| Feeding way | Automatically and continuosly feeding |
| Adhesive | Solute type |
| Needed power | 220V 3.5 kw |
| Weight | 100 kg |
| Overall Size | 5300 x 820 x 1300mm |
| The scope of Count | 0~999999 |
