TM-220

Envelope Window Film Sticking Machine

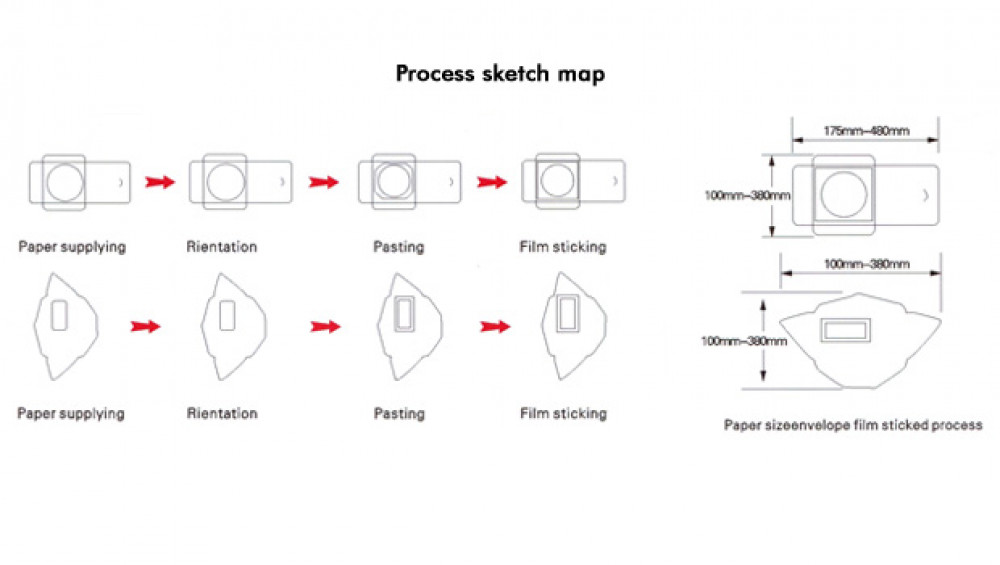

Air suction bottom paper extraction separates papers reliably, and can be fed with paper continuously. Forcibly positioning and automatic wheel rolling gumming ensures the even glue amount. Film is adjusted by CVT, which is convenient and reliable.

Technical Specification
Model TM-220
Max. operating speed 12000 pcs/h
Range of procedded products 100x175mm - 380x480mm
Applied paper 80-200 g/m2
Electricity capacity 3.7 kw
Window specifications 55x30 - 130x180 mm
Machine weight 1100 kg
Machine dimension (LxWxH) 2200x1100x1400 mm
