TM-700

Carton Window Film Sticking Machine

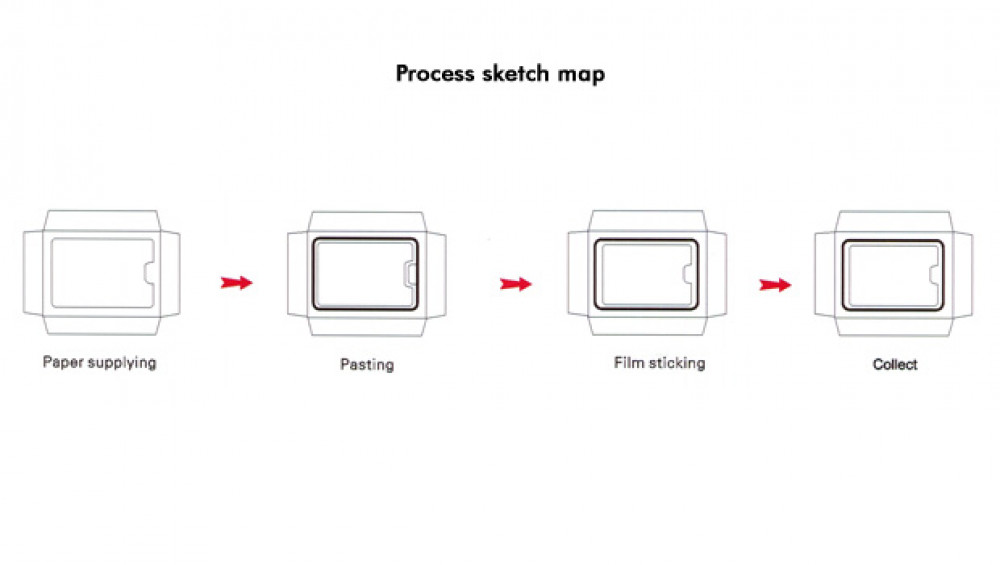

TM-700 filming machine for paper box windows is designated to film various paper bos windows. It has the function of bottom paper extraction, driver positioning, automatic gumming and the cut in the center of the film. Film length can be adjusted by the window size. The machine has the feature of close structure, convenient operation, strong suitability and high working efficiency. It is the right equipment to produce window film.

Technical Specification
Model TM-700
Max. operating speed 6000 pcs/h
Window specifications 350x250mm 50x50mm
Range of processed products 160x160mm - 700x600mm
Applied paper 200-400 g/m2
Electricity capacity 4.5 kw
Machine weight 1800 kg
Machine dimension (LxWxH) 4000x1200x1580 mm
