ZD-230

Full Automatic Pasting Machine for envelop red bags

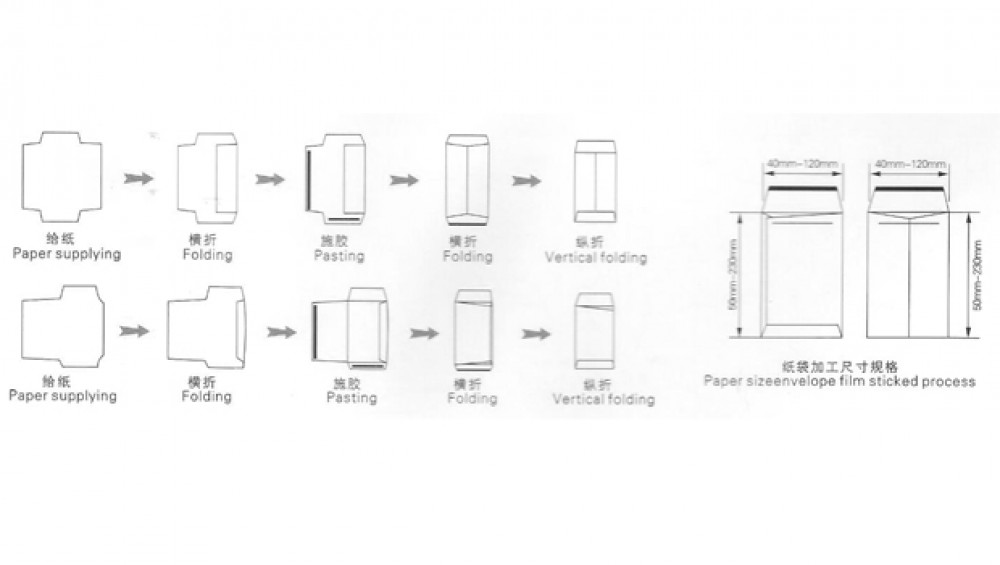

ZD-230 full-automatic pasting machine for envelop red bags is used to produce standard Chinese envelops from No. 1 to No. 6 andpaper bags like little red bags. Air-suction bottom paper extraction separates papers reliably, and can be fed with paper continuously.Air suction roller fence fold is stable and precise. Wheel gumming ensures the even glue amount. It has the features of high precision,stable performance and convenient operation, so is the right equipment to produce chinese envelops and red bags.

Technical Specification
Model ZD-230
Max. operating speed 18000 pcs/h
Range of processed products 40x50mm - 120x230mm
Applied paper 80-157 g/m2
Electricity capacity 3.3 kw
Machine weight 1000 kg
Machine dimension (LxWxH) 1750x850x1280 mm

Rekomendasi Produk

TD-380 Silicone Paper Sticking Machine (Envelope Peel & Seal Machine)

TD-380
TD-380 Silicone Paper Sticking Machine (Envelope Peel & Seal Machine) is used to stick silicone tape with the envelope flap. It is used to finished

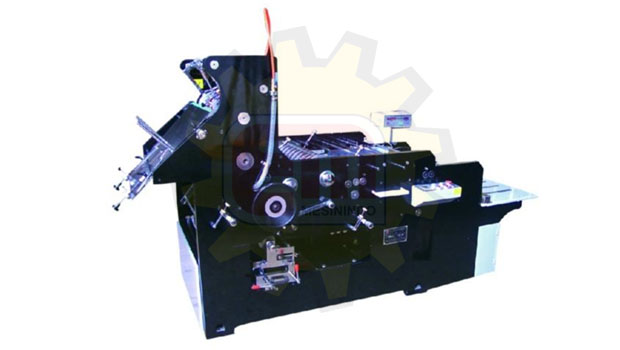

ZD-520 Envelope Machine (Pocket Envelope

ZD-520
ZD-520 pocket envelope making machine (Biggest pocket envelope) is applied to the production of 1-10# pocket envelope and similar paper bags. It works on the principle of air-suction

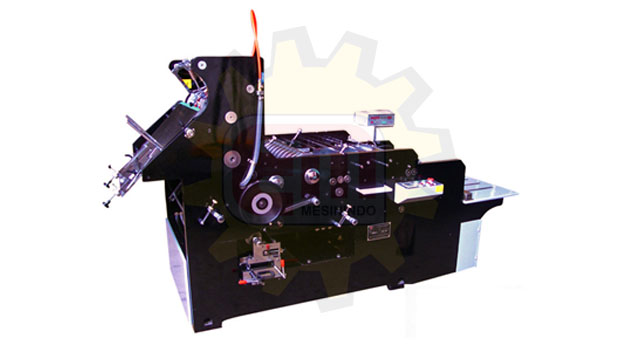

ZD-420 Envelope Making Machine

ZD-420
ZD-420 big pocket envelope used to produce big pocket envelopes, paper bags. It has features of reasonable structure, stable performance, convenient operation and high production

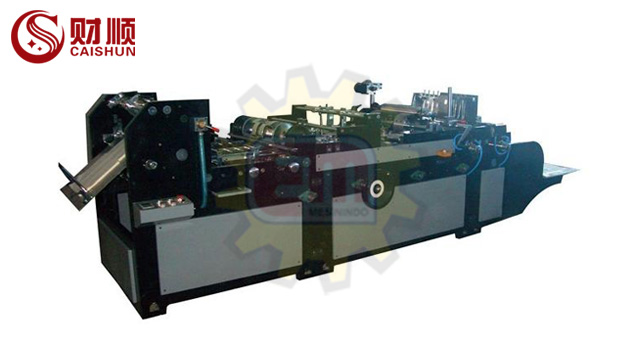

Chinese and Western Envelope and Paper Bag Pasting Machine
