ZD-370

Pocket Envelope Making Machine

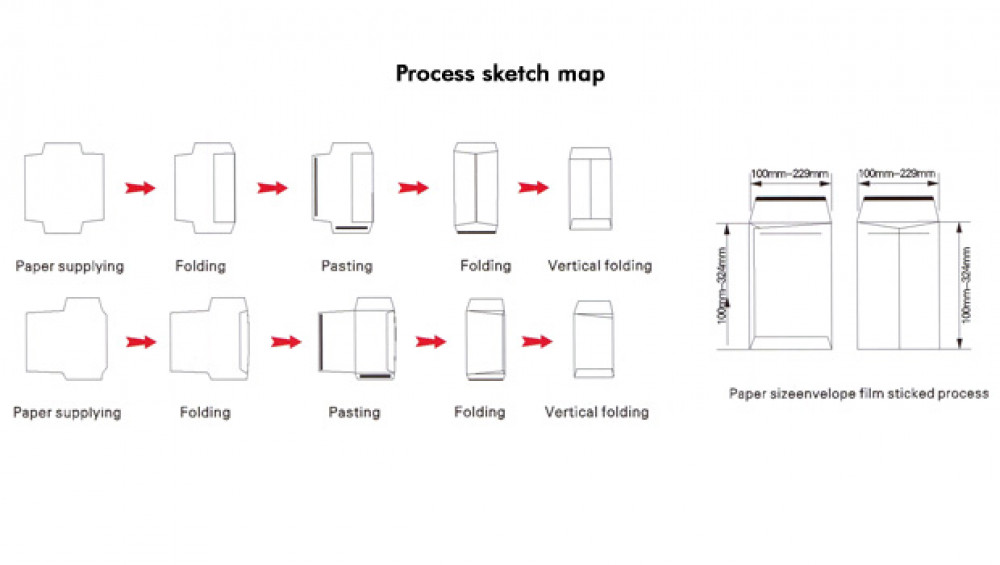

ZD-370 automatic flat bag pasting machine is used to produce standard Chinese envelope from No.1 to No.9, and related paper bags. Air suction bottom paper extraction separate papers reliably, and can be fed with paper continuously. Air suction roller fence fold is stable and precise. Wheel gumming ensures the even glue amount. It has the features of high precision, stable performance and convenient operation, so it is the right equipment to produce Chinese envelopes and related paper bags.

Technical Specification
Model ZD-370
Max. operating speed 8000pcs/h
Range of processed product 100x100mm - 229x324mm
Applied paper 80-157 g/m2
Electricity capacity 4.5 kw
Machine weight 1200 kg
Machine dimension (LxWxH) 2400x980x1280 mm
