ZF-291

Chinese and Western Envelope Pasting Machine

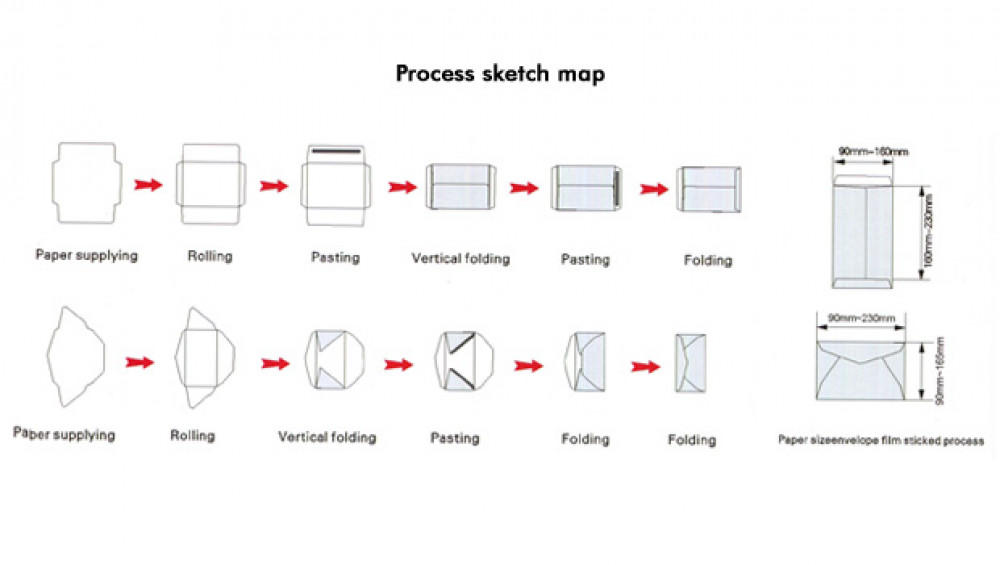

The machine has both Chinese and western usages. Paper feed parts employ the structure of bottom air suction paper extraction, while air suction transport avoids double-feed phenomena. Automatic four edge indentation increase precision and reduces errors. Horizontal fold parts use roller air suction. Paper jams decreases and paper bags can go through the fence smoothly. Traditional system employs bearing, synchronous wheel and timing belt to cut the noise.

Technical Specification
Model ZF-291
Max. operating speed 3000-12000 pcs/h
Range of processed product

120x120mm - 160x230mm
90x90 - 230x160 mm
Applied paper 80-157 g/m2
Electricity capacity 4.5 kw
Machine weight 1200 kg
Machine dimension (LxWxH) 3000x890x1400 mm
