SW-560

Fully Automatic Laminator Machine

SW-560 Fully Automatic Laminator Machine. New design of double layer patting plate of auto stacker makes operation easily.

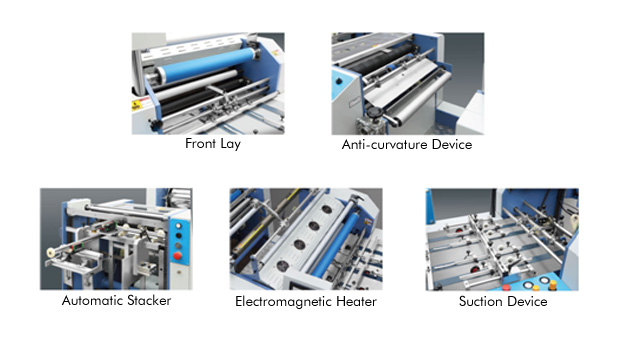

  1. Paper loading plate of feeder can land to ground to load paper pile easily
  2. Suction device guarantees stability and smooth of paper sending
  3. Bigger heating roller with electromagnetism technology ensures high quality lamination
  4. Separation structure design makes operation and maintenance easily
  5. New design of double layer patting plate of auto stacker makes operation easily

Technical Spesification
Model SW-560
paper size 210x300mm - 560x820mm
paper tickness 100-500g/m2
Laminating speed 0-60m/min
Voltage 380V
laminating temperature 80-110oC
Gross Power 20kw
Machine weigth 2600Kg
Overall dimension 46000x1350x1600mm
