ZKT-340
ZKT-340 Window Patching Machine

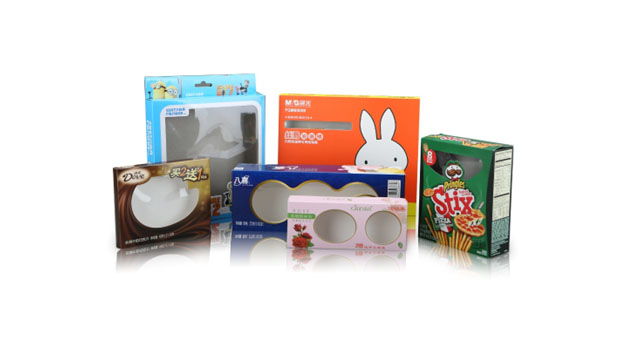

Models ZKT-340 Window Patching Machine are widely used for sticking films on the windows of various paper boxes, e.g tissue box, medicine box, shirt box, etc. It is developed on the original window patching machine in light of customers’ requirements. Our research and development team, through the continuous improved & perfect human design, let the machines be easier to operate and better in efficiency, accuracy and stability. Both basic components and major automated accessories employ the proprietary technology of this company. Therefore, 340Window Patching Machine can meet customers’ requirements at a higher level.
|
Technical Specifications |
||
|
Paper Length: 100 - 330mm |
Paper Caliper: Paper box & cardboard box 250-1000g/m2, Corrugated/flute up to 3mm |
Single line Speed: 4000-12000pcs/h |
|
Paper Width: 120 - 420mm |
||
|
Film Length: 60 - 120mm |
Film Thickness: 0.03 - 0.25mm, OPP, PVC, PET, PE etc. |
|
|
Film Width: 30 - 160mm |
Film Thickness: 0.03 - 0.25mm, OPP, PVC, PET, PE etc. |
Single line Speed: 4000-12000pcs/h |
|
Power of Pump: 0.75 kw, Main Power: 1.5 kw |
||
|
Net Weight: 1200 kg, Gross Weight: 1500 kg |
||
|
External Dimension: 3550*950*1400 mm |
||
